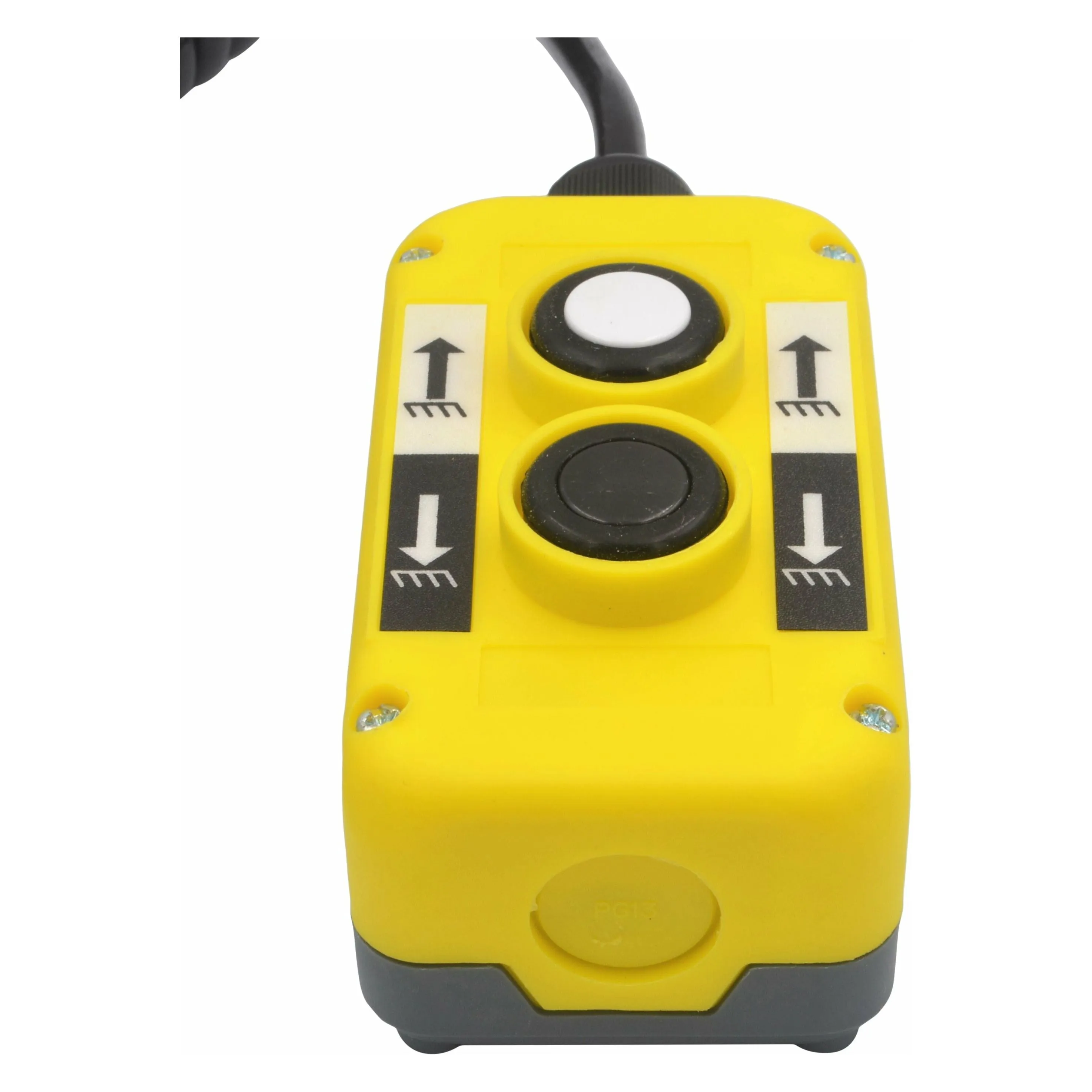

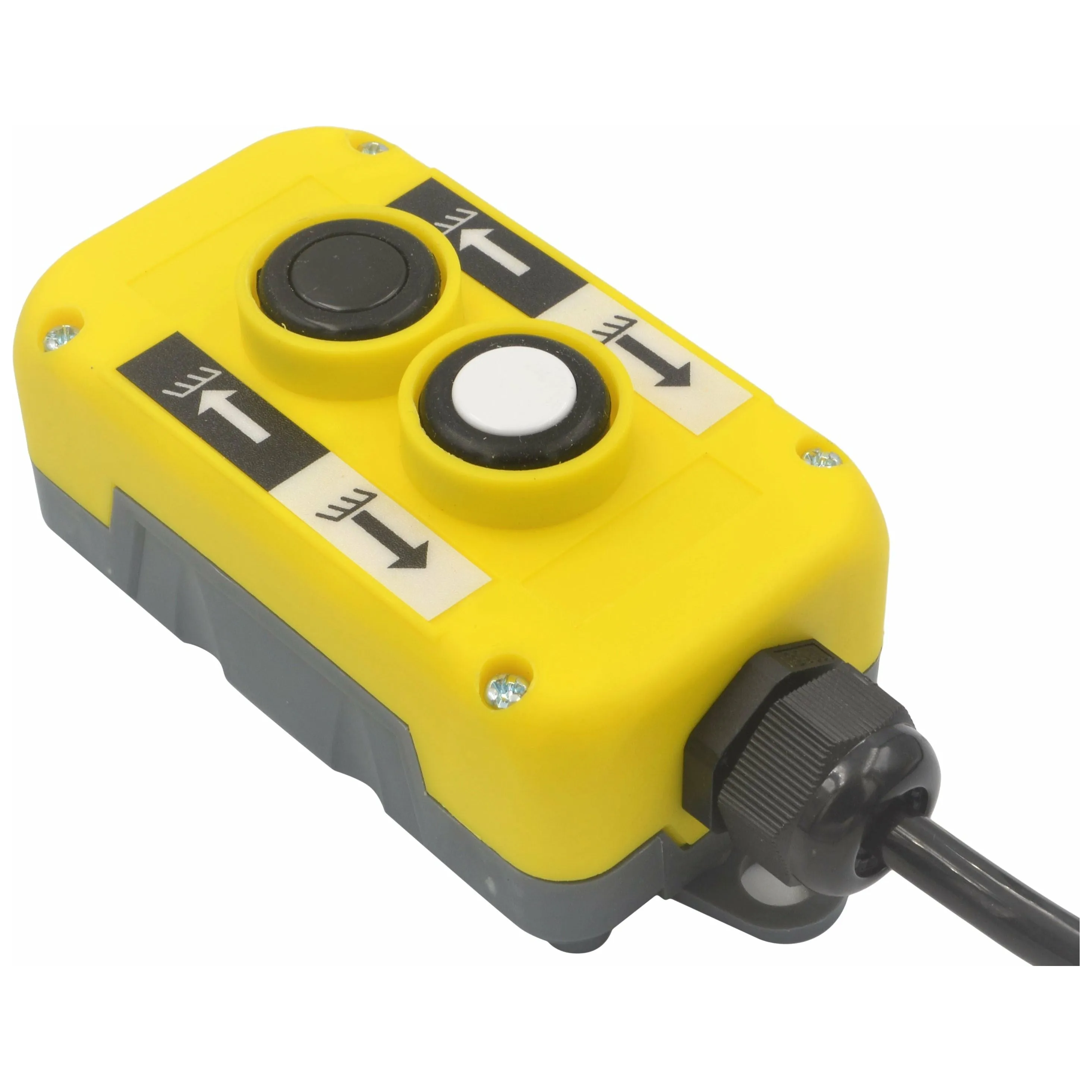

Truck Tail Lift Control Switch Box 2 button
Application suits on/off or up/down systems that require the operator to be mobile. Not specific to any one unit or system as the control can be easily modified internally to suit most applications, an example being a tail lift or crane.
Specifications

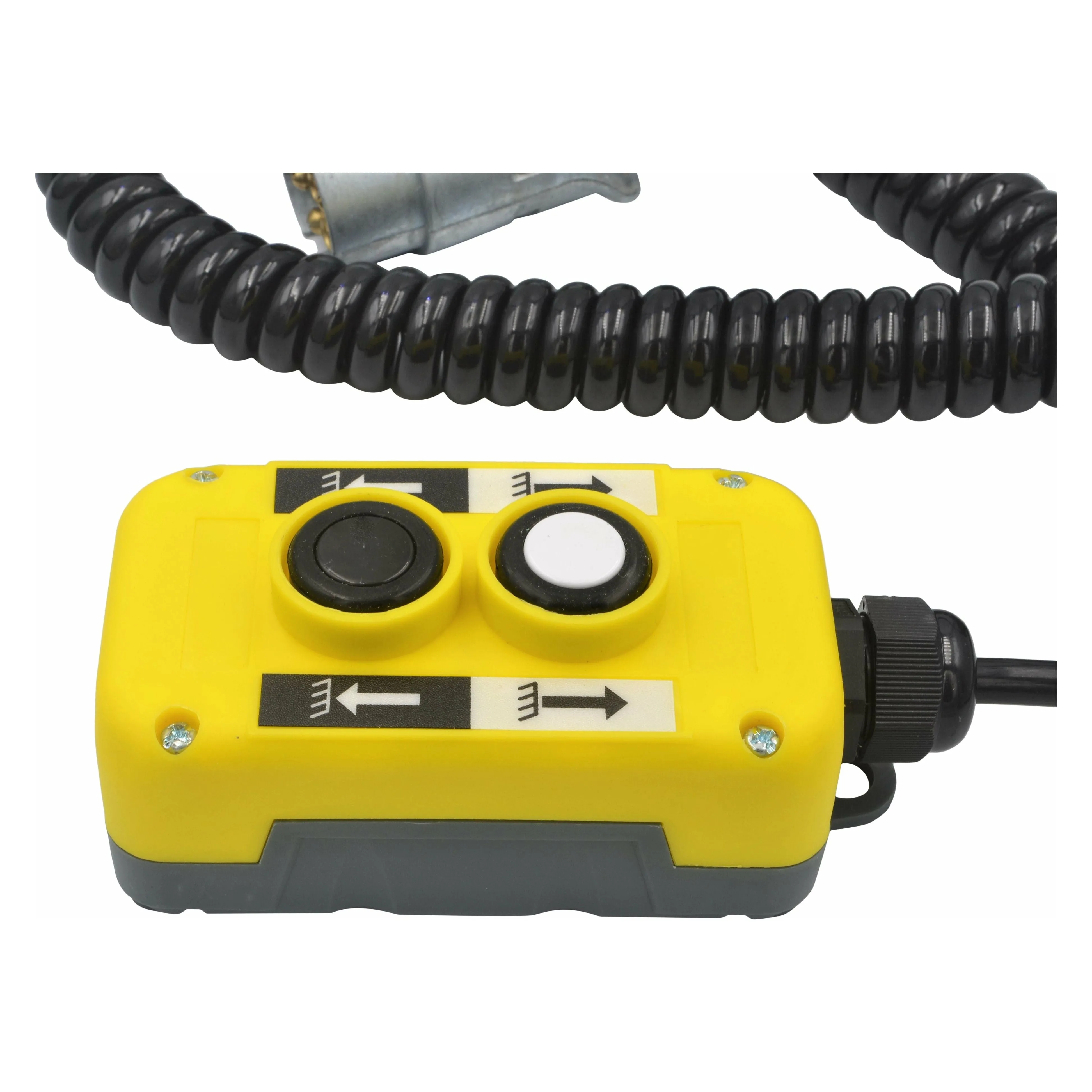

- Two button spring loaded momentary switch

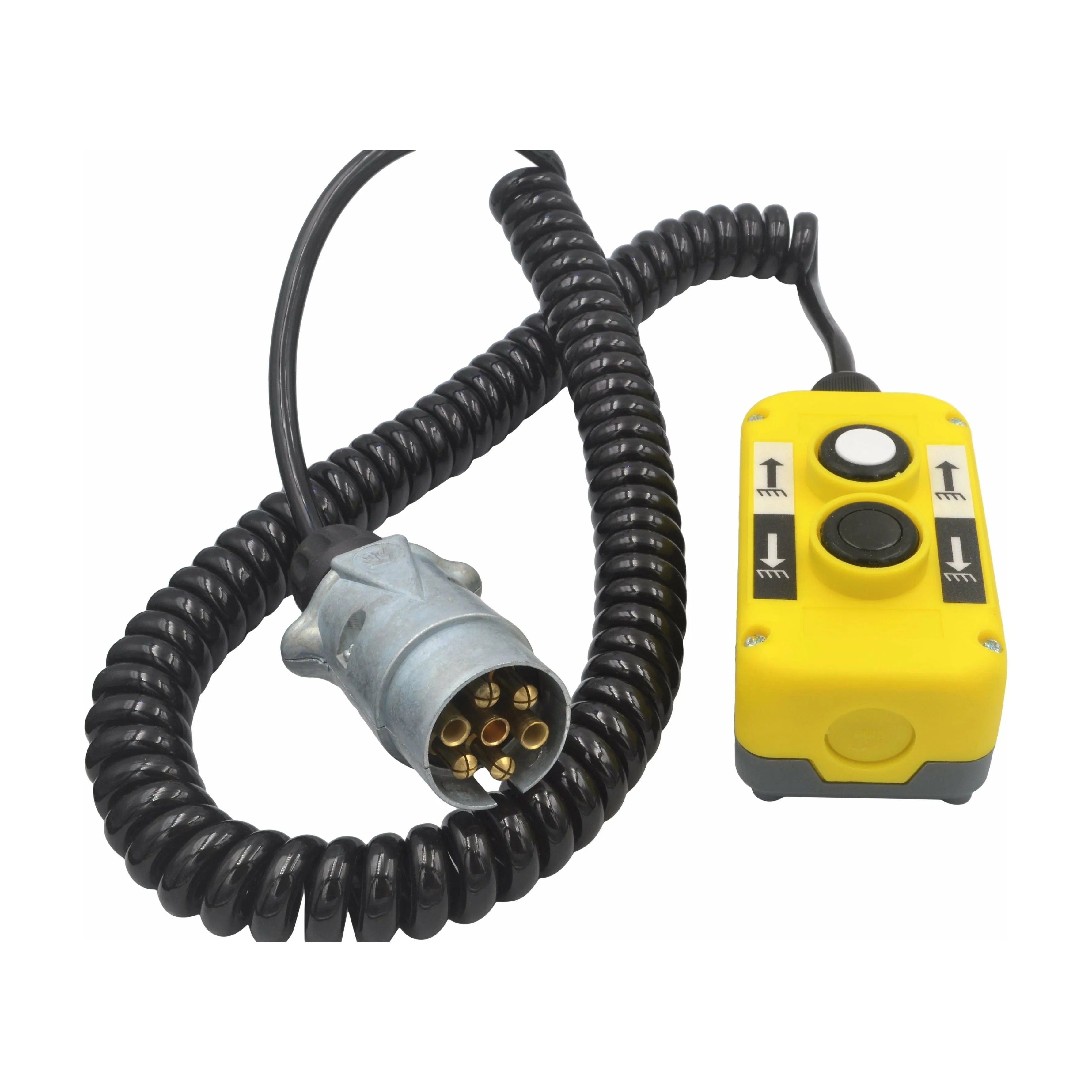

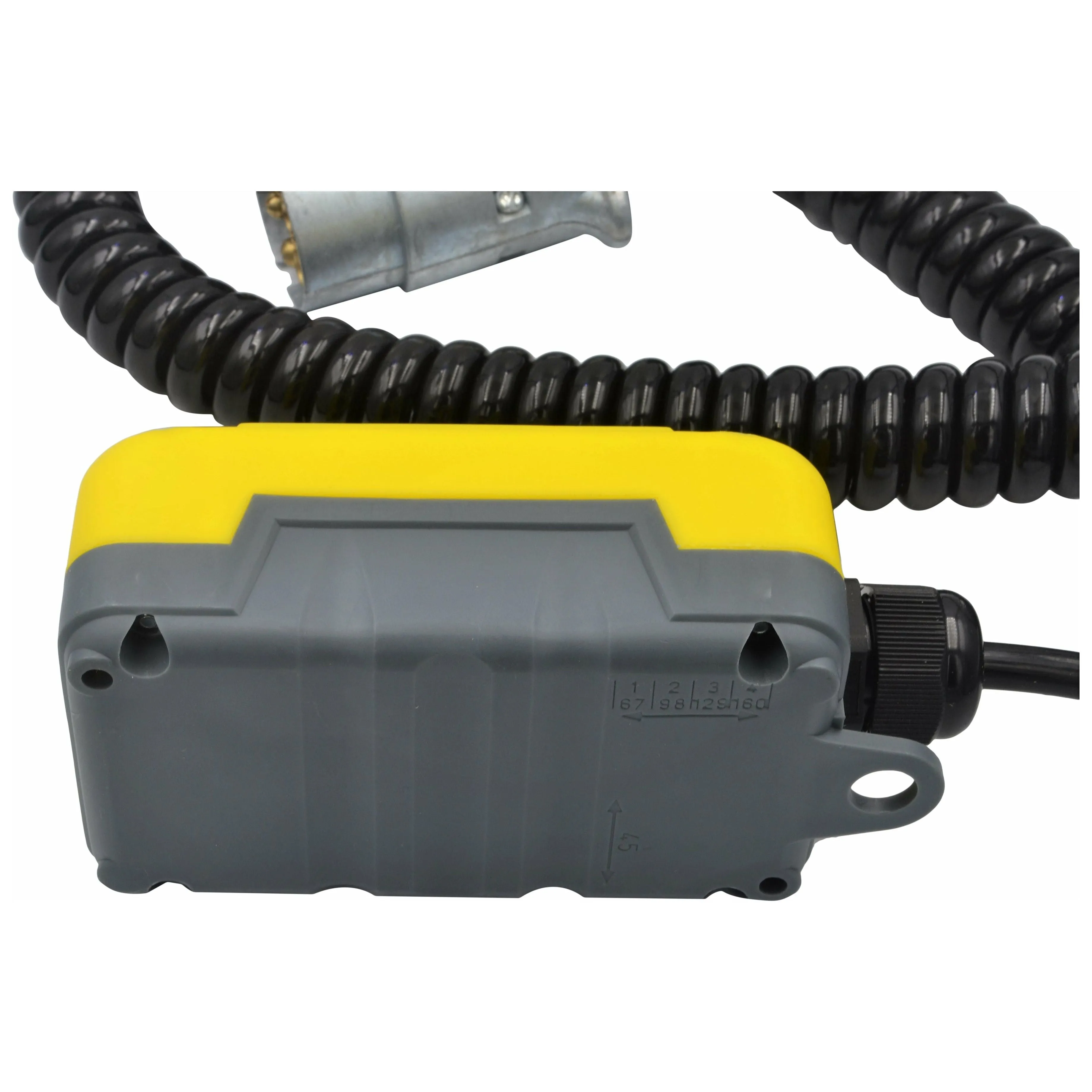

- 4 Core 1-meter spring spiral lead,3 meters extended.

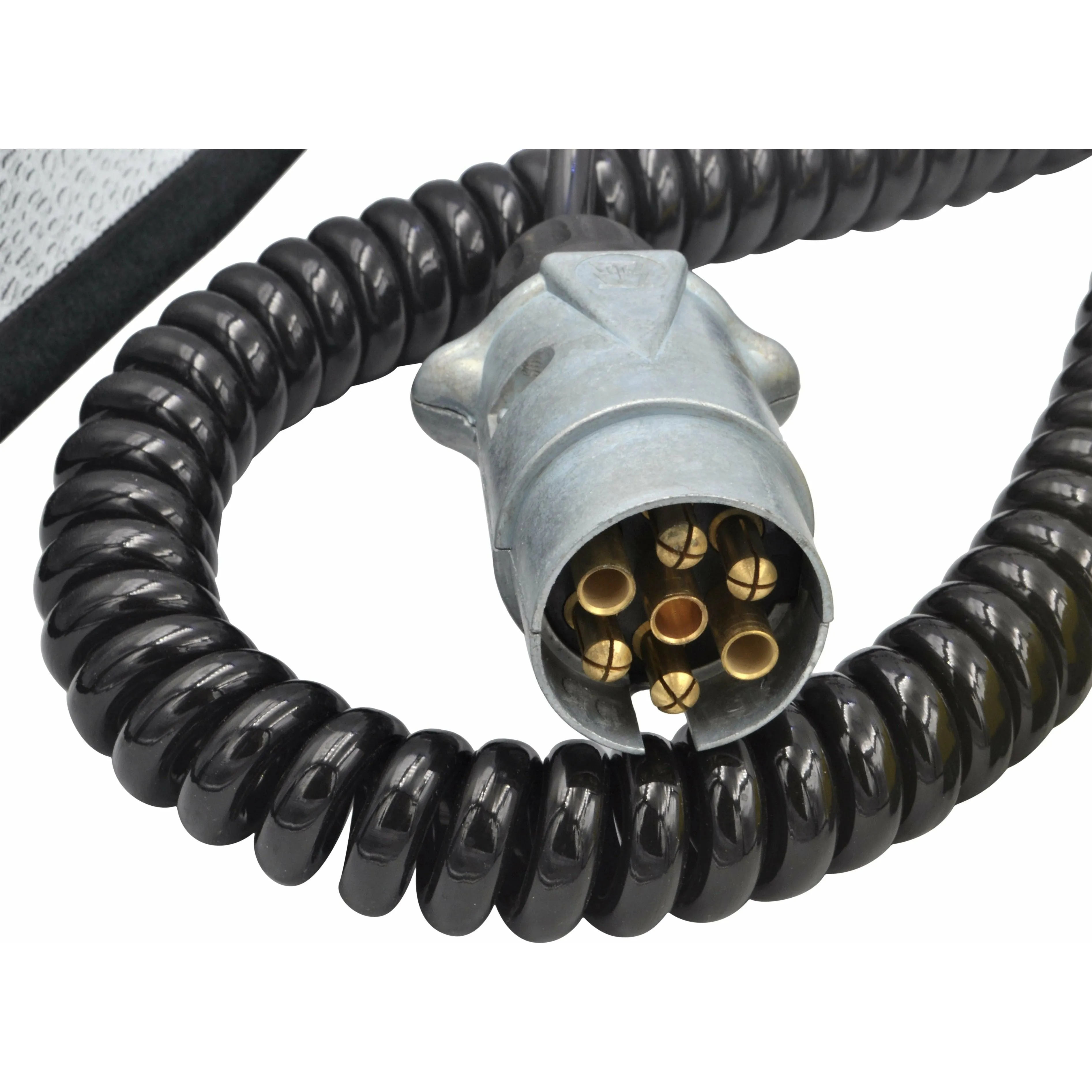

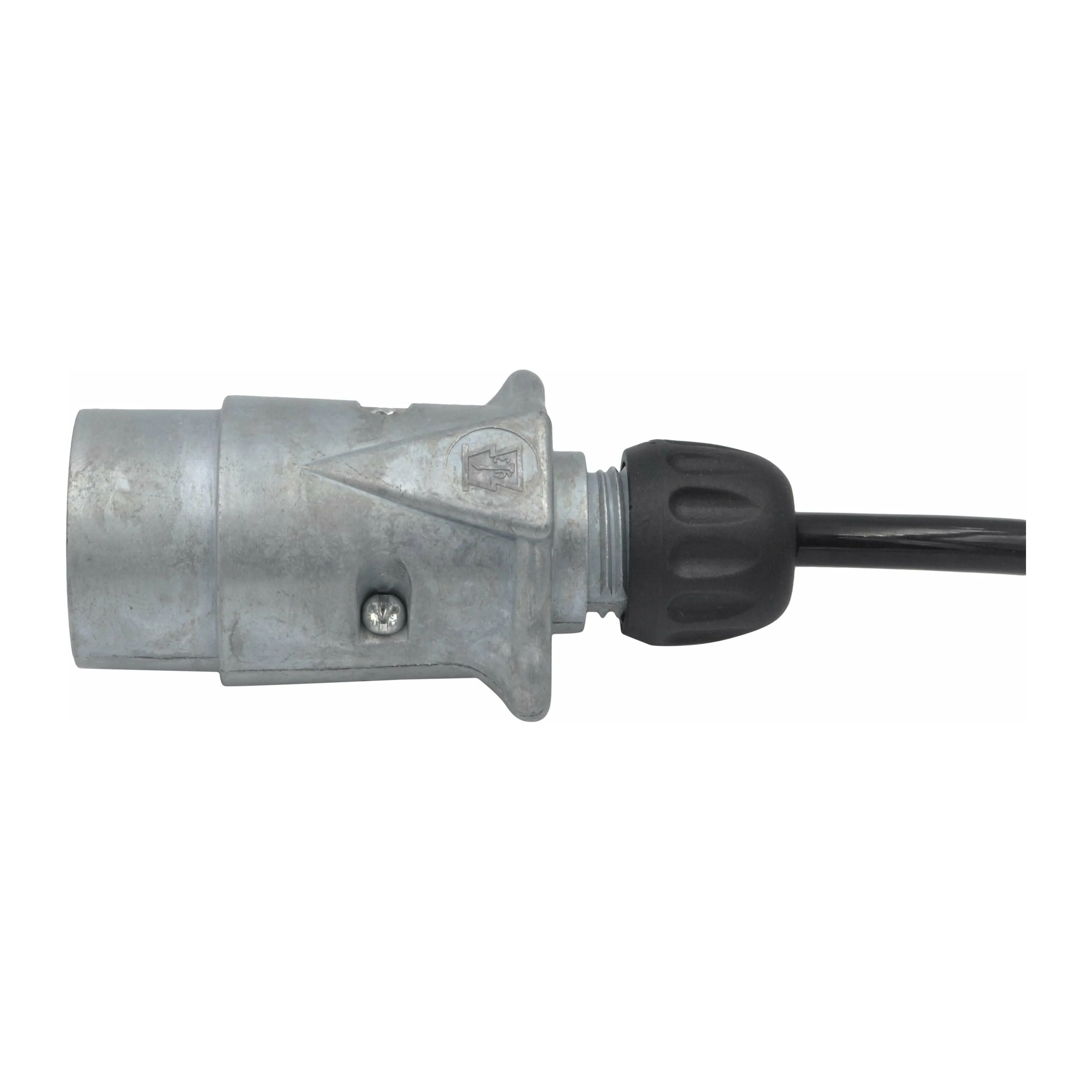

- Fitted with 7-pin standard trailer plug
- Suit 12V or 24V systems
- Single-speed activation
- IP 65-rated enclosure

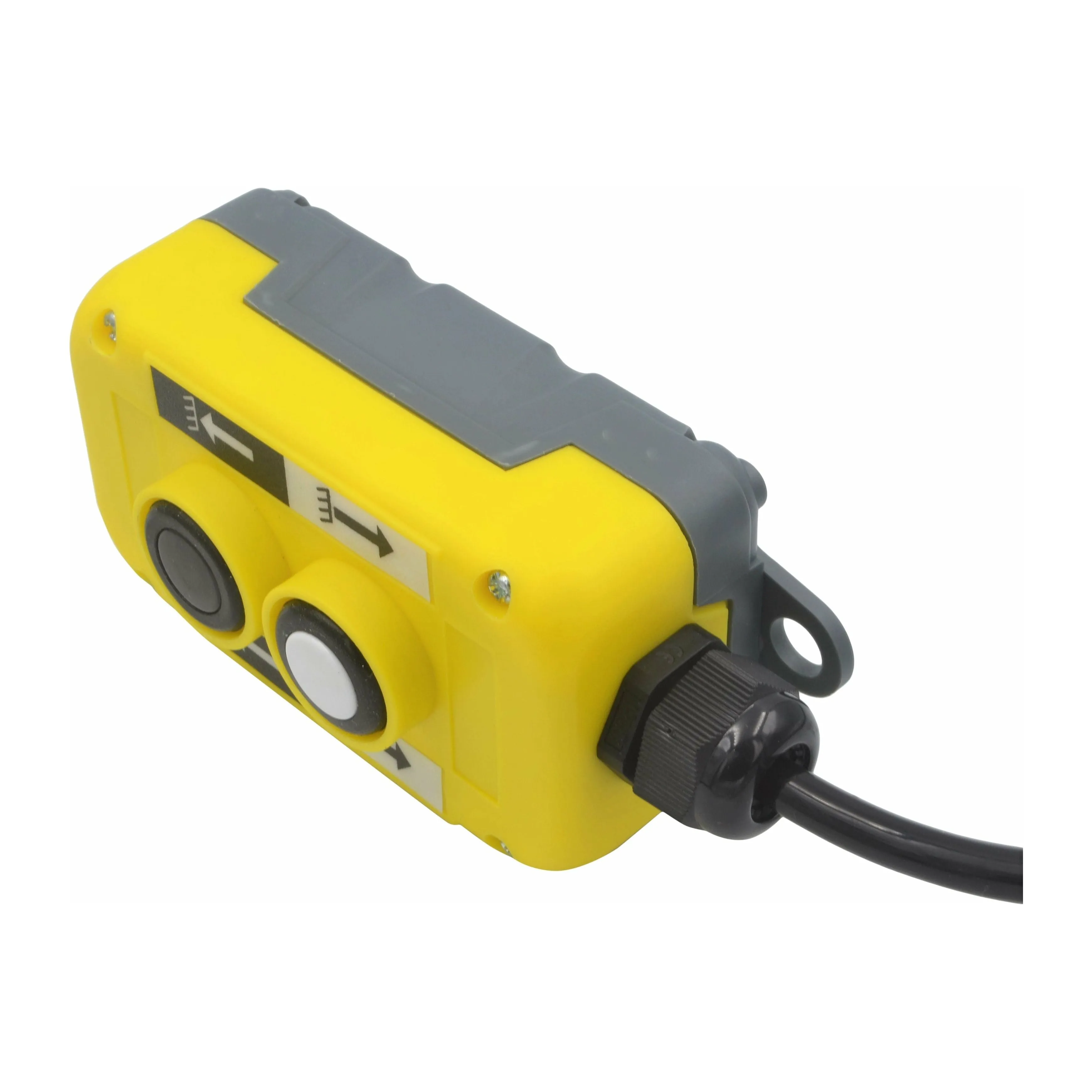

- Raised guard around buttons to prevent accidental activation
- Controller body yellow/grey
- Button markings white/black
- Markings include white/black direction arrows
- Size of control (L x W x H): 110 mm x 60 mm x 55 mm
- Inbuilt eye for storage when not in use.
- Used extensively as a remote mobile option control station.
