Please contact us ( ) or use the form above for price quote.
*** Worldwide drop-ship directly from factory ***
Please include information like your intended voltage (or hydraulic type) and size of your chain.

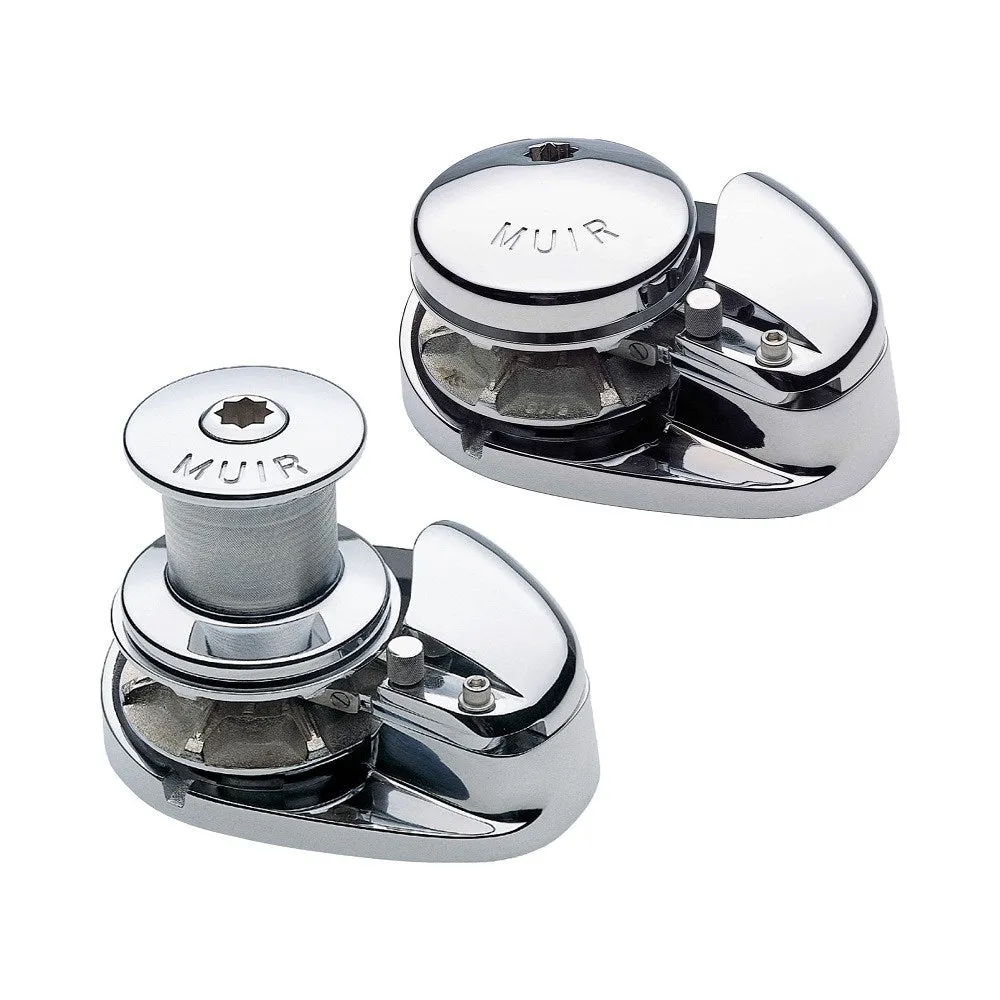

Muir VR850 / VRC850 Storm Stainless Steel Vertical Windlass
- Polished stainless steel components
- Rope chain combination gypsy for rope and chain combination or chain only
- Rope Chain Management System (RCMS)
- Quick release integrated swivel chain pipe cover
- Gypsy with low profile clutch top arrangement
- Heavy duty marine grade, dual direction motor in 12 Vdc and 24 Vdc
- Independent gypsy and capstan operation
- Capstan models feature heavy duty knurled finish for increased grip
- Quick fit adaptor
- Stainless steel shaft
- Cone clutch / brake
- Stainless steel mounting bolts
- Shaft seal
- Self-lubricating bush
- Clutch release handle
- Installation/Operation booklet
Vessel Length | 8 - 11 m (26 - 35 ft) |
Power Supply | 12 / 24 Vdc |
Motor | 600 W |
Max Load | 386 kg (850 lb) |
Work Load | 96 kg (212 lb) |
Amps Work Load | 80 / 50 |
Max Line Speed | 24 m / min (77 ft / min) |
Chain Size | 6 - 8 - 10 mm (1/4 - 9/16 - 5/8”) |
Rope Size | 12 - 14 - 16 mm (1/2 - 9/16 - 5/8”) |
Net Weight | VR 15 kg (33 lb) VRC 16.5 kg (37 lb) |
