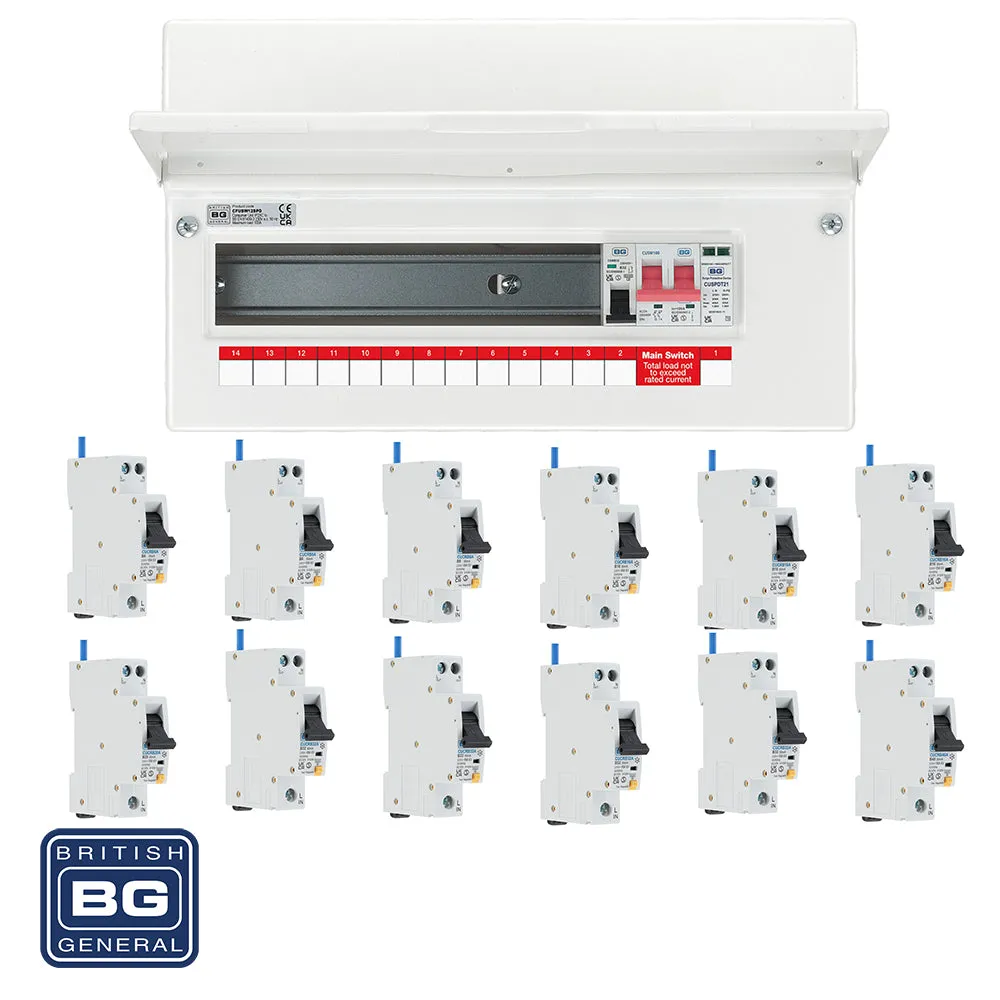

BG Fortress CFUSW12SPD 16 Module 12 Way 100A Main Switch Consumer Unit with T2 SPD 12 RCBOs
16 Module 12 Way 100A Main Switch Consumer Unit with Type 2 SPD.
This comes with 12 RCBOs Single Pole, B Curve, 6kA, 30mA, Type A
- 3x 6A
- 3x 16A
- 1x 20A
- 4x 32A
- 1x 40A
Dimensions (HxWxD)mm for CFUSW12SPD: 388 x 231 x 116mm
BG Fortress Circuit Protection
The BG Fortress circuit protection range has undergone its most extensive upgrade yet, with the latest improvements dovetailing the new guidelines around the 18th Edition Wiring Regulations, Amendment 2.
Description:
This range of all metal consumer units offer a flexible solution for the 18th Edition Wiring Regulation BS7671.
Available in a number of sizes from 5 - 18 way with SPD, these consumer units will suit all applications. Each unit has an integrated spirit level, aiding installing without additional tools.
Supplied with 100A Main switch and SPD device. Each unit is supplied with busbar, label sheet 2 or 4 cover blanks and instructions.
MCB, RCBO and Control Devices can be fitted into all of the consumer units depending on the circuit requirements.
Lockable covers are available in the range, please contact us for more information.
Data Sheet:
Instruction Manual:
BG Fortress Circuit Protection Catalogue:
