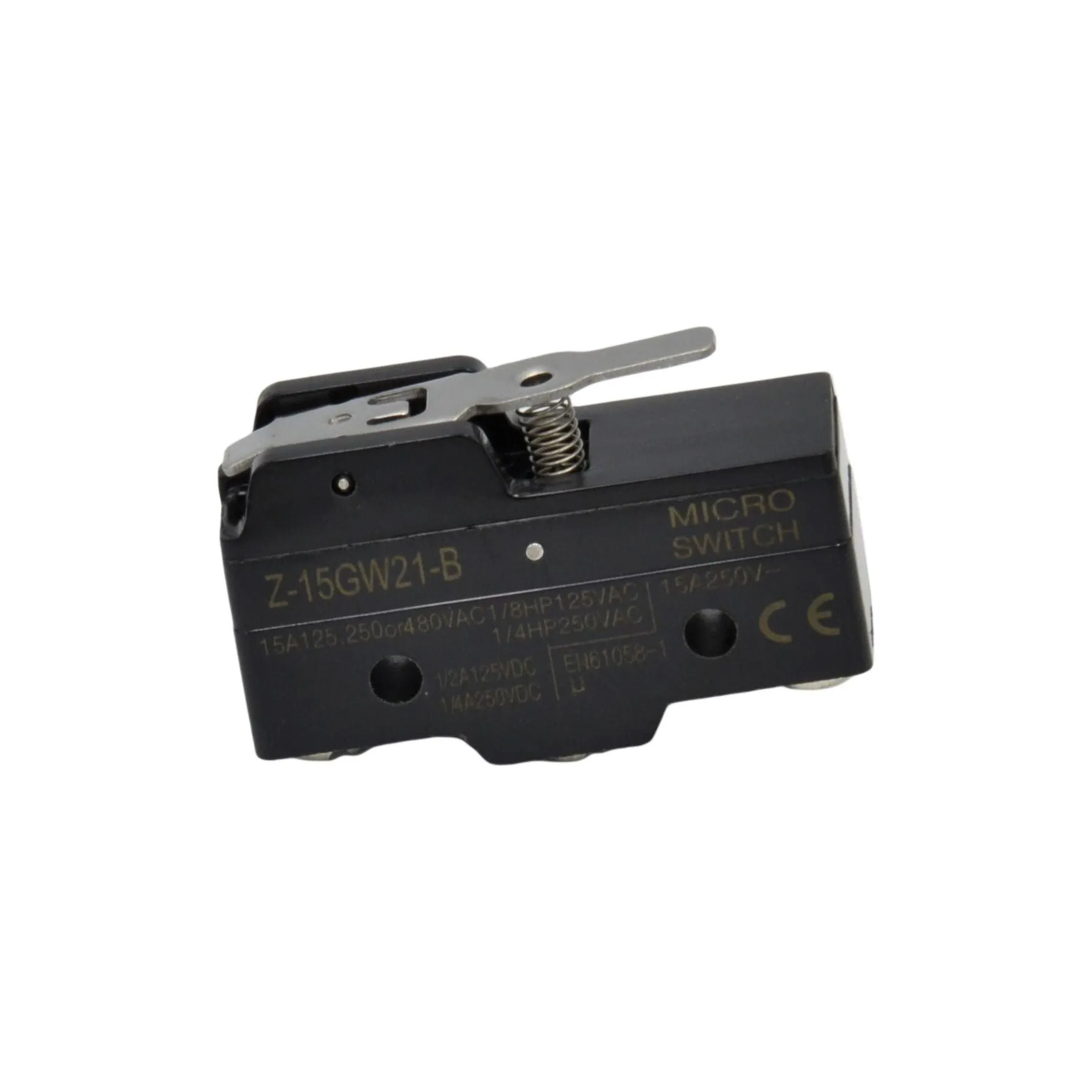

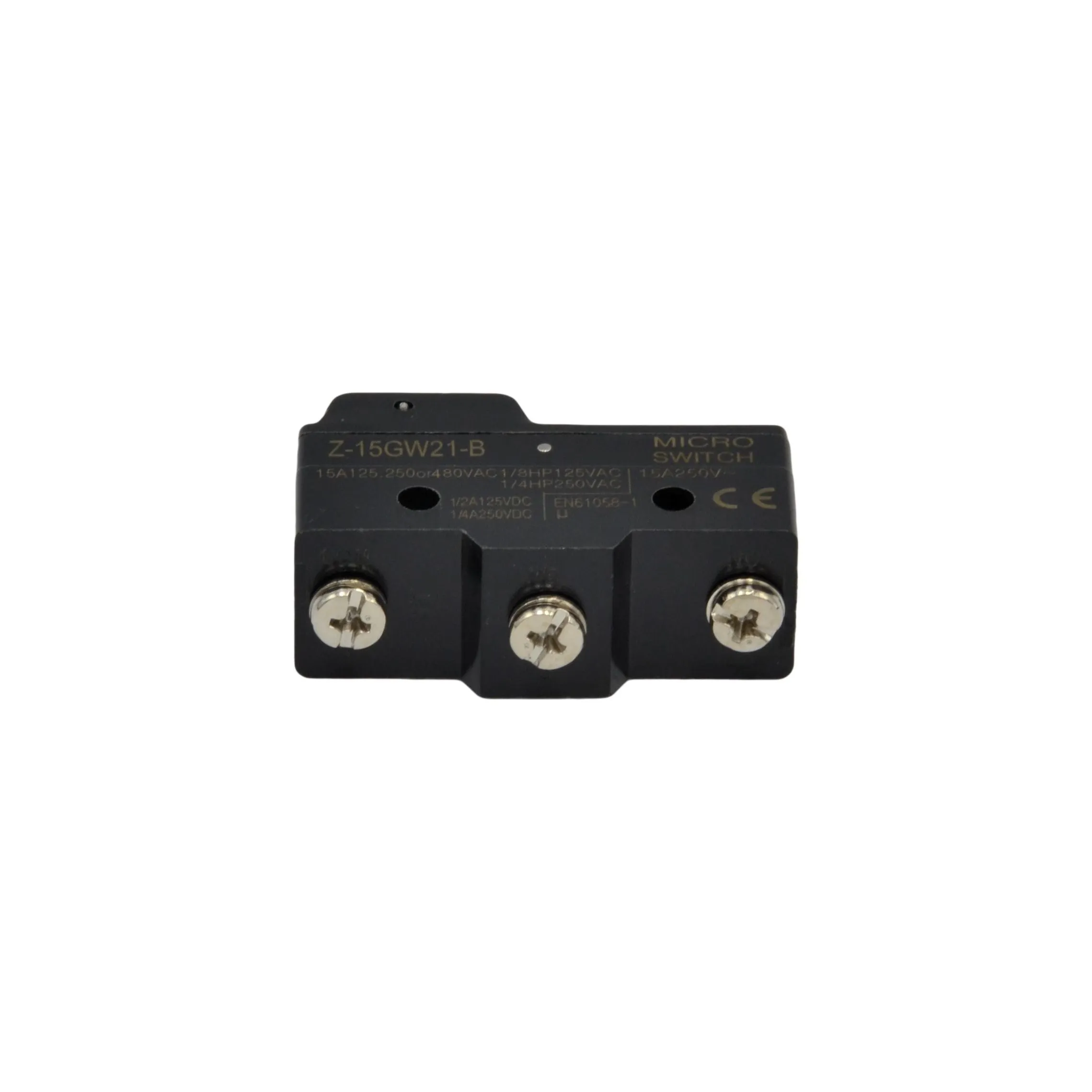

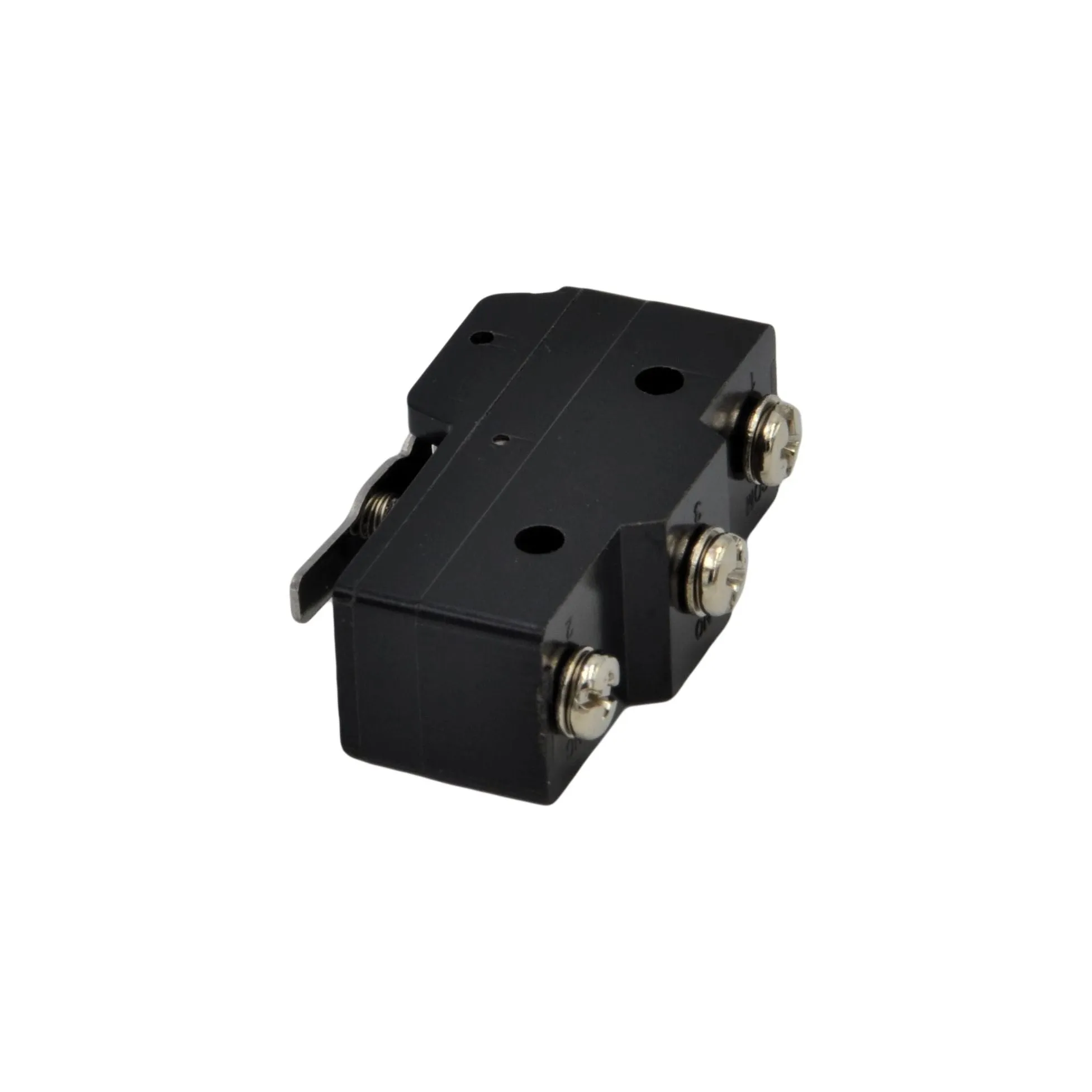

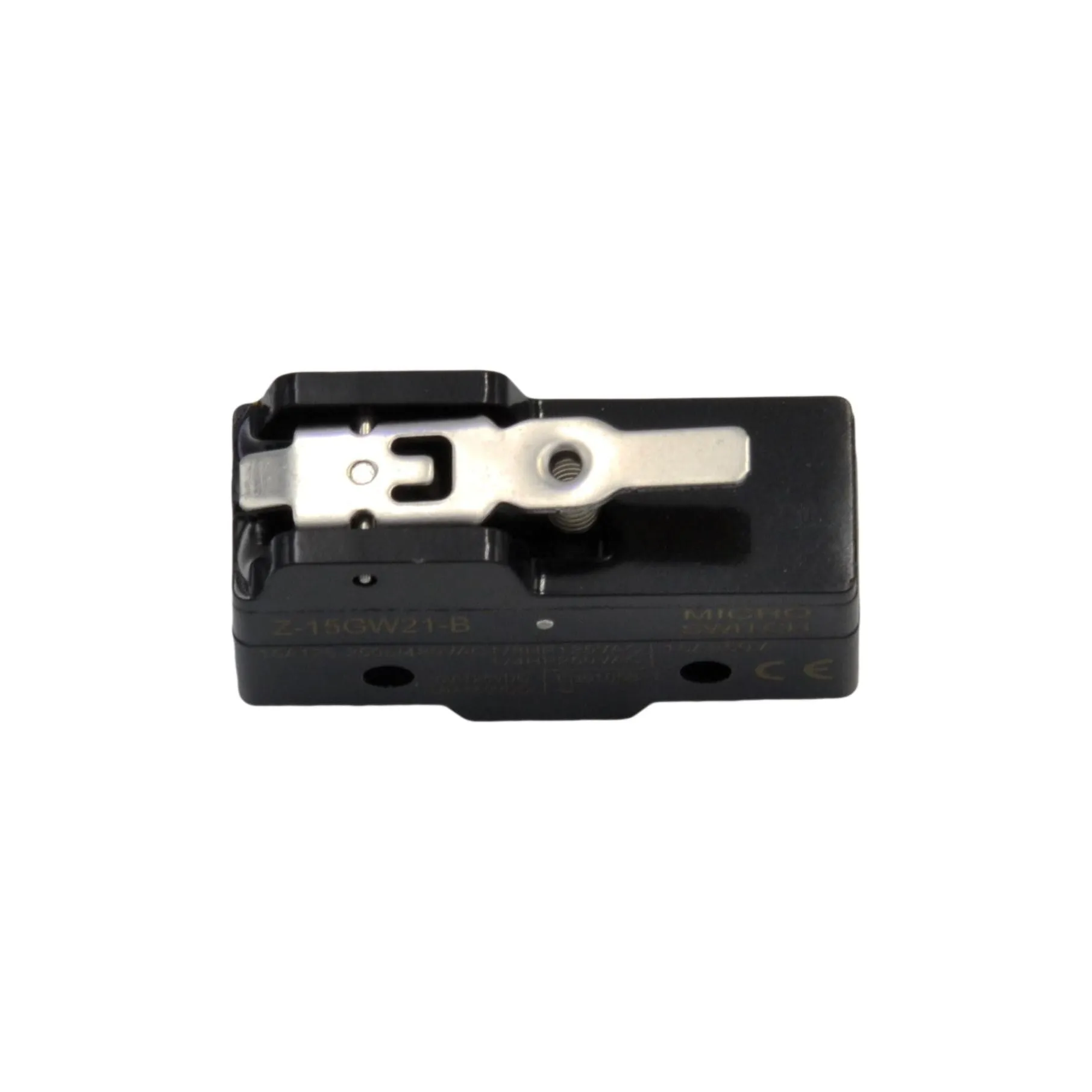

Name: Z-15GW21-B Short Hinge, Stainless Steel Lever Micro Limit Switch
SKU: 123445

Z-15GW21-B Short Hinge, Stainless Steel Lever Micro Limit Switch

$ 22.40

$ 0.00

Save: $

Title:

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Features

High Switching Capacity: Supports up to 15A for both ON and OFF functions
Exceptional Precision
Broad Range of Operational Speeds
Multiple Terminal Options: Choose from solder terminals, tab terminals (labeled as 'C'), or blank selections for screw terminals"

Contact Form

Operation speed: 0.01mm~1m/sec
Operating Frequency: Mechanical: 240 operations/min Electrical: 20 Operations/min
Contact resistance: 15MΩ max.(initial value)
Insulation resistance: 100MΩ min.(at500VDC)
Dielectric strength: 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity
1500VAC, 50M660Hz For 1 minute between current-carrying and non current-carrying metal parts
1500VAC, 50M660Hz For 1 minute between each terminal and ground
10-50Hz,1.5mm double amplitude
Shock:Mechanical Durable: 1000m.Sec(about 100G' S)
Malfunction: 300m.Sec(about 30G' S)
Ambient temperature: General purpose type: -25~ 80°C, Sealed type:-15~80°C
Humidity General purpose type: 85%RH max, Sealed type: 95%RH max.
Life: Mechanical: 20,000,000 operation/min
Electrical: 500,000 operation/min
Weight: About 22 to 58g
