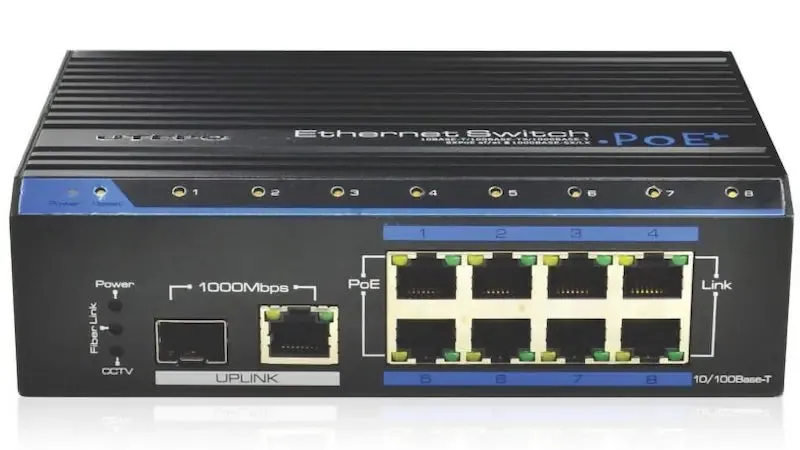

UTP7208E-POE-A1

Industrial 8 Ports PoE Fast Ethernet Switch

Downstream Ports
8* 10/100Base-TX
Uplink Ports
1*1000Mbps SFP Port and 1*10/100/1000Base-T
Network Standard
IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、EEE802.3 X
Switch Capacity 5.6Gbps
Throughput 4Mpps
Switch Processing Scheme
Store and Forward
Memory Buffer 1M
MAC Table 8K
PoE Standard 802.3af/at
PsE Type
End-span
Power Pin Assignment 1/2( )，3/6(-)
PoE Power Output 44~57V DC , 30 watts max
PoE Budge 150 watts max
Lightning protection
6KV Execute：IEC61000-4-5
ESD
6KV Contact discharge
8KV Air discharge
Execute：IEC61000-4-2
Power Supply: DC 48~57V
Power Dissipation: ＜6W
Work temperature: -40℃~75℃
Storage temperature: -40℃~85℃
Humidity(Non-condensin): 5%-95%
Dimension（L×W×H）: 163mm×110mm×46mm
Weight: 530g
Regulator
CE、FCC、ROHS
