Features

• RGB Backlighting

• Built-in Bluetooth module for use with free Switch-Pros App

• Program and operate your panel from any device with access to the iOs or Google Play Store

• Battery Voltage Readout on App screen

• Orange LED switch indicators

• 6 Programmable LED Status indicators

Specifications

• 150amp capacity with 17 outputs

• 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)

• 11 rated @ 15A, which can be combined for larger loads

• 1 Low Side driver switch, rated @ 2A

• Adjustable Output Overcurrent Values

• Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)

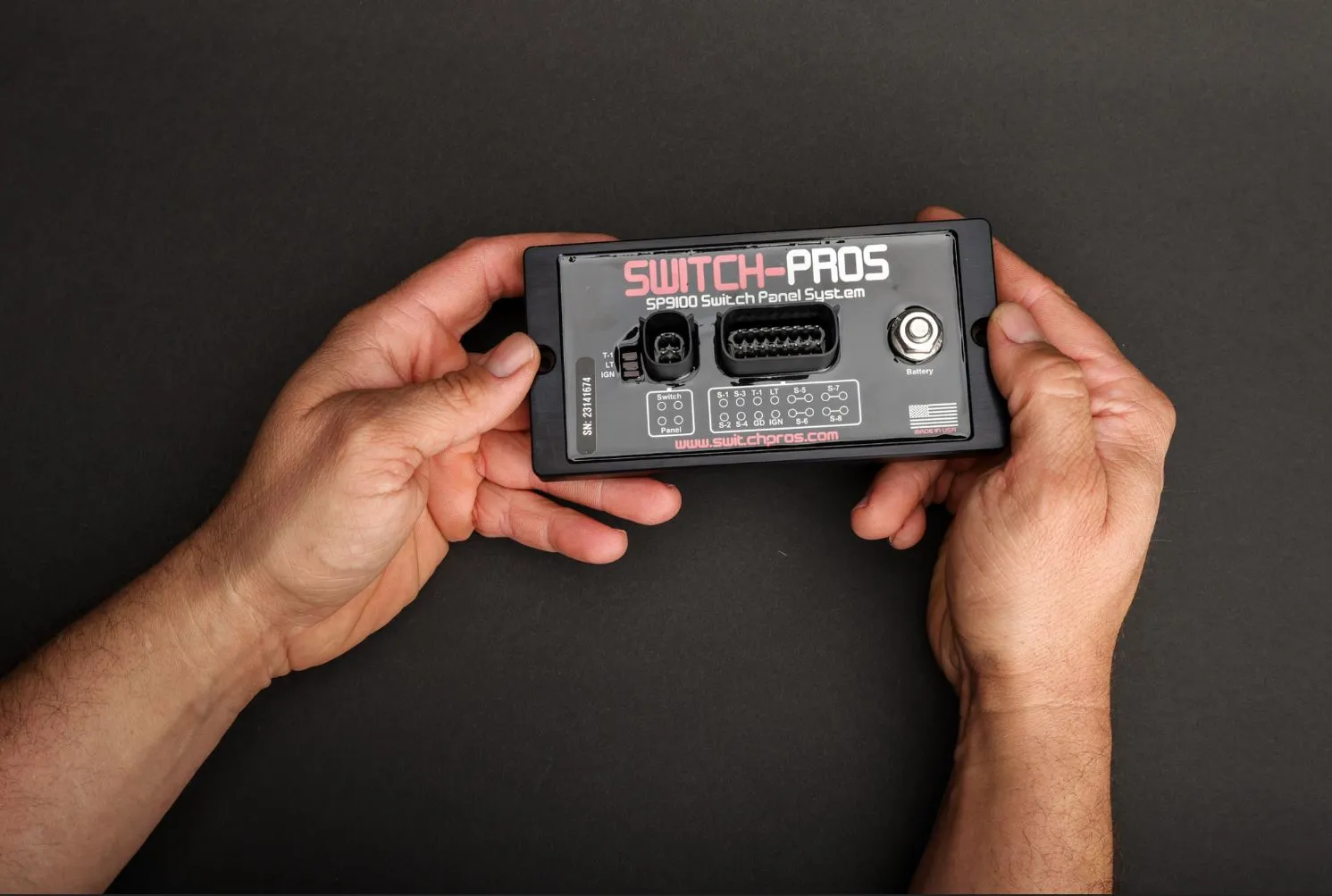

• Power Module Measures 7”L x 3.5”W x .5”H (excluding connectors)

• Power Module Under Hood rating 125°C to -40°C

• Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)

• Master Mode, with ability to turn up to 11 other switches On AND Off with one touch

• On-On-Off logic

• Touch Panel lockout

• On/Off or Momentary

• Ignition or Battery Input

• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation

• Automatic Power-Up upon vehicle start up

• Safety Lockout for specific switches

• Time Delay off

• No bulky relay box

• Up to 4 output wires can be assigned to 1 switch

• Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)

• Low Voltage Disconnect

• Sleep Mode for minimal power consumption

• Daisy Chain up to 3 Switch Panels to One Power Module

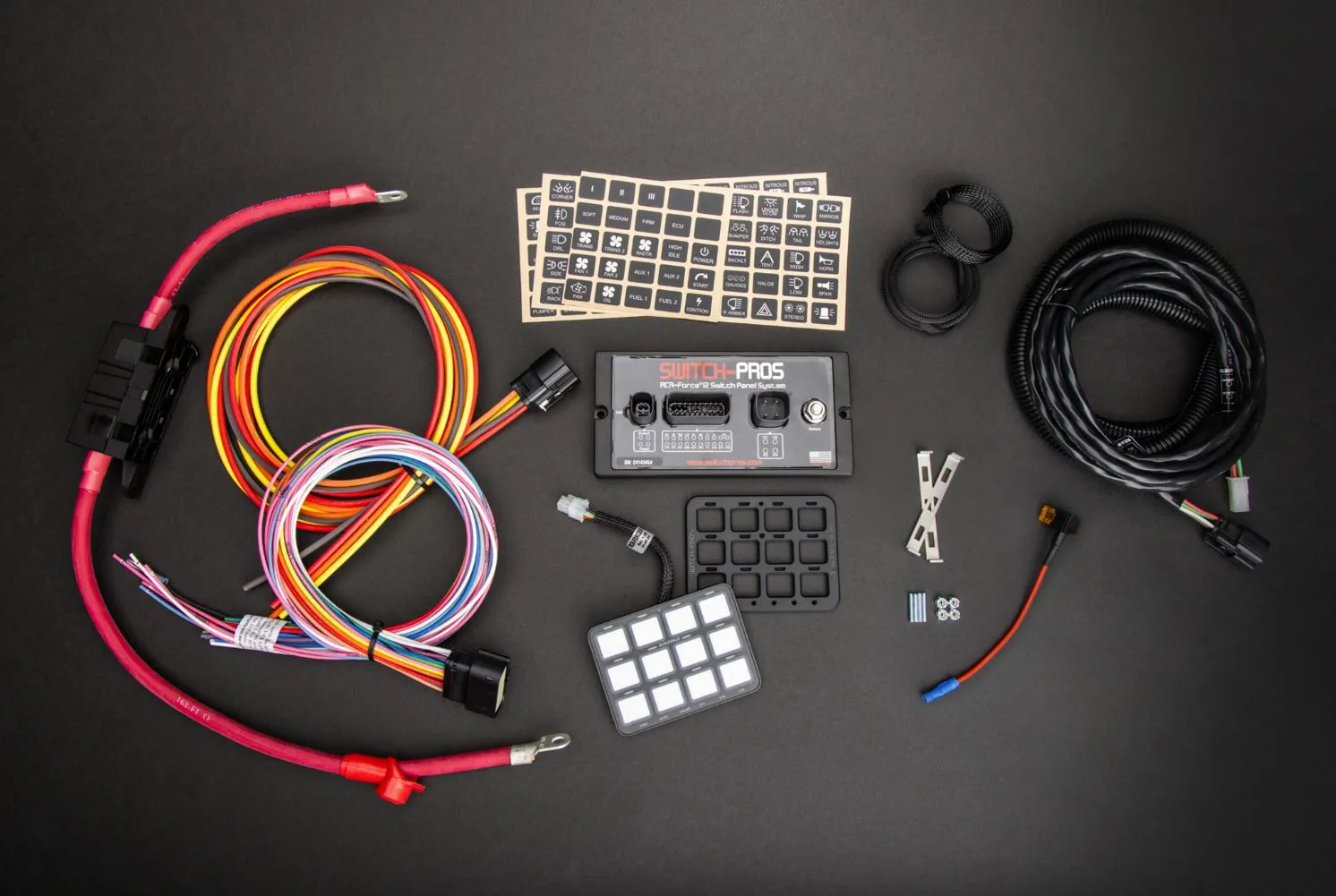

What’s Included?

• Switch Panel and Power Module

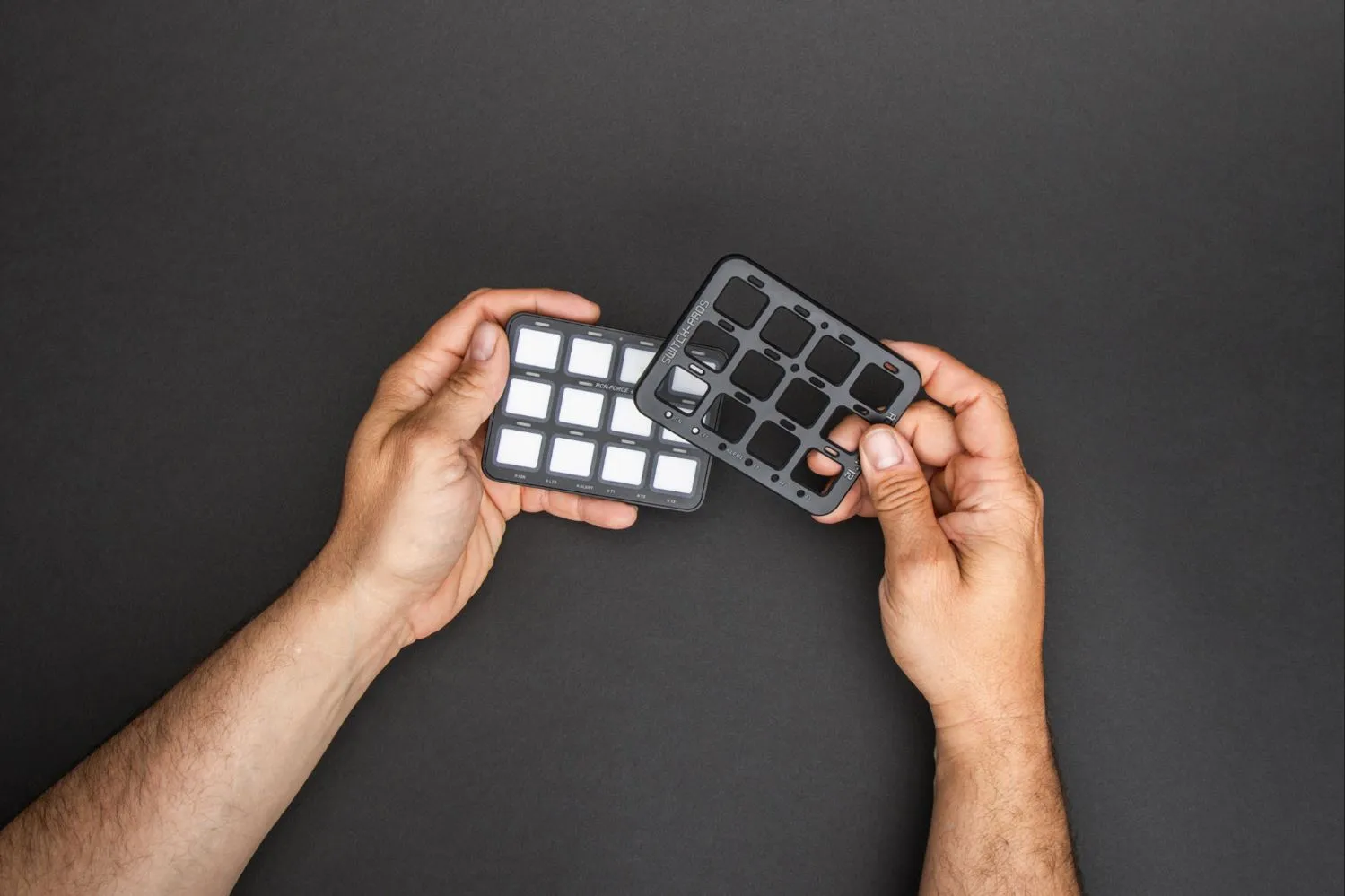

• RCR-Touch® cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)

• 11’ of Communication Cable between Switch Panel and Power Module

• Power Cable with 150A inline fuse

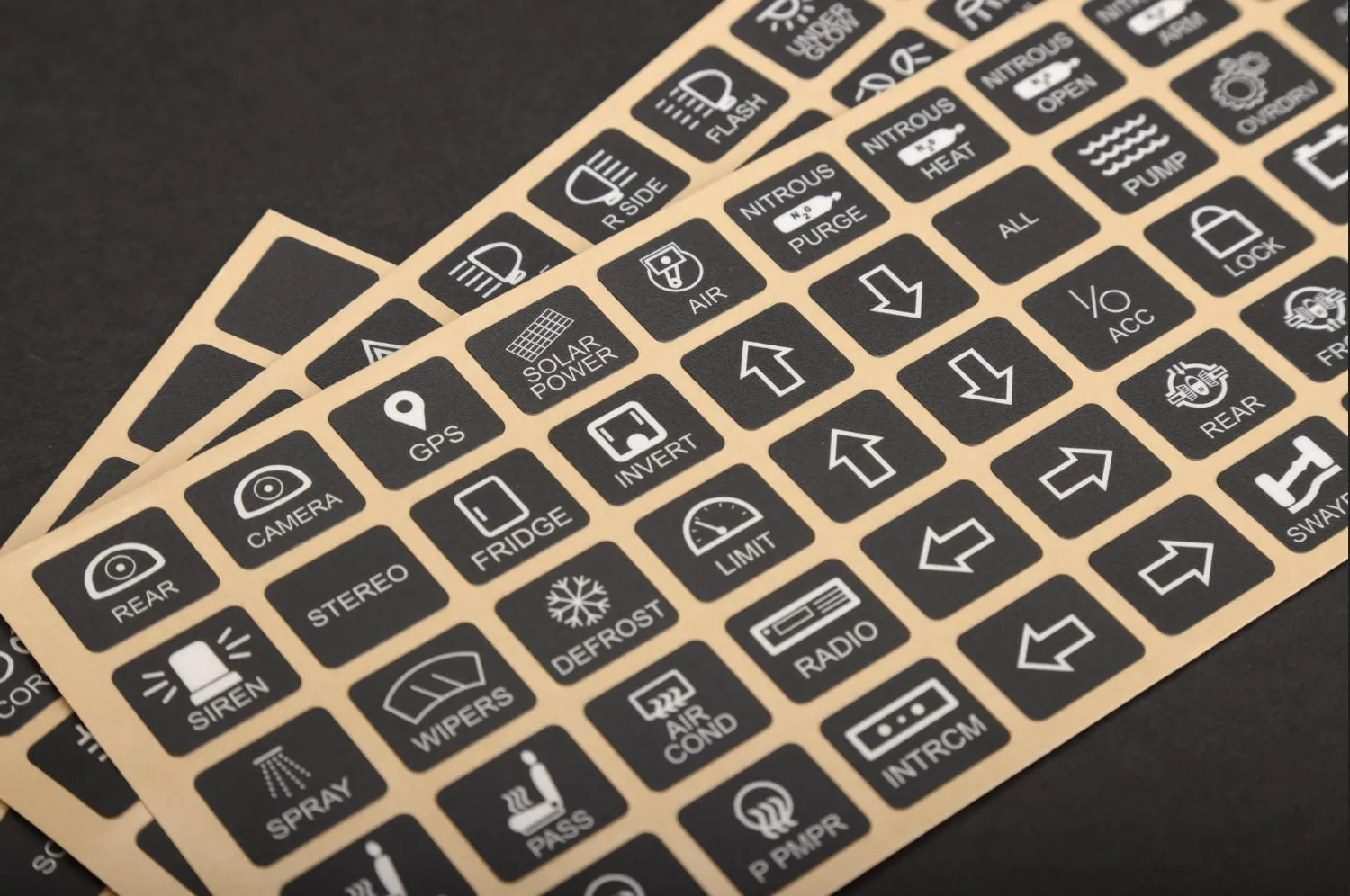

• 125 User Selectable Legends included (Horizontal orientation)

• Installation brackets and hardware

• 20-pin color coded output harness

• 4-pin color coded high inrush output harness

• Detailed installation Guide
