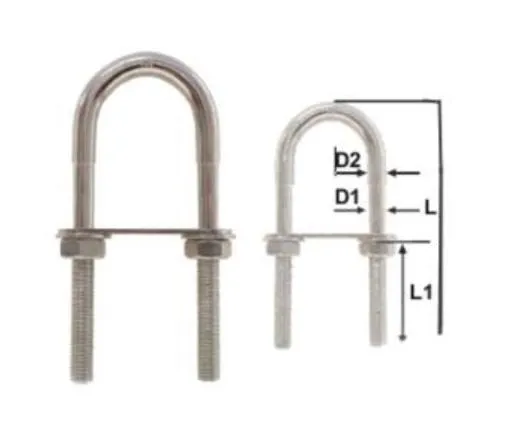

304 grade stainless steel "U" bolts with a stepped shaft giving a solid bearing surface for the bearing
plate for added strength.
All have 8mm thread and 10mm diameter material.
| PART NUMBER | LENGTH | L1 MM | D1 MM | D2MM |
|---|---|---|---|---|
| RWB-2695 | 76mm | 32 | 8 | 10 |
| RWB-2696 | 90mm | 47 | 8 | 10 |
| RWB-2697 | 115mm | 47 | 8 | 10 |
| RWB-2698 | 140mm | 47 | 8 | 10 |
