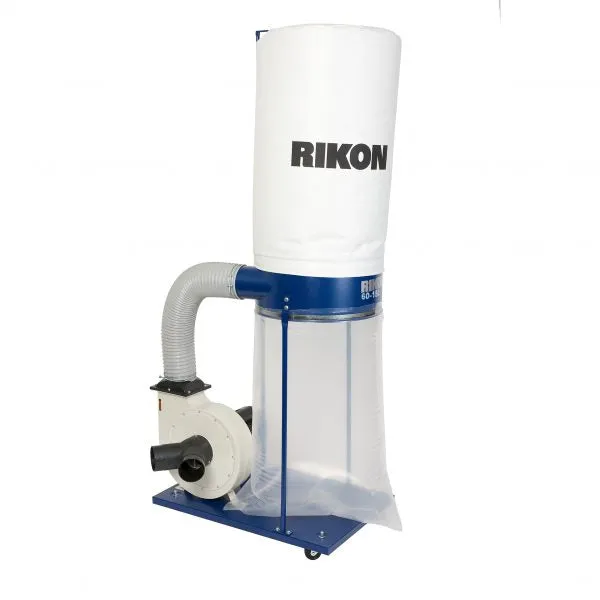

Model 60-150:
1.5 HP Dust Collector
Dust Collection Keeps Your Shops Air Breathable
- • 1.5 HP Motor
• Casters For Mobility
• 4″ Hose Inlet
• Safety Lock Toggle Switch
1.5 HP Dust Collector #60-150 offers increased 1,192 CFM vacuum power for use with larger machinery, and has a single 5” dust port with dual 4” dust intake fitting for use with two operating machines at one time. All
metal construction with casters for mobility. Includes top cloth filter bag, lower disposable plastic chip bag, quick-release band clamps, one 4” inlet cap, and safety on/off switch. Motor is 115/230V, and is wired for use with 3-wire 120V receptacles.
Important Notes:
- There is an additional $75 shipping charge for this item shipped to your home within 48 Contiguous United States unless it is picked up at the store.
Estimated Delivery time: 7-10 Business Days if in warehouse stock
Motor
| Horsepower | 1-1/2 HP |
| Amps | 10.4/5.2 |
| Volts | 115/230V, 60Hz |
| RPM | 3,400 |
| Blower Wheel Diameter | 10” |
| Blower Wheel Material | Steel |
| Air Flow | 1,192 CFM |
| Sound Rating @ 3 Feet |
|
| Bag Filtration | 5 Microns |
| Bag Diameter | 20” |
| Bag Capacity | 5.4 Cubic Feet |
| Bag Length | 33” |
| Hose Connection | 1@5” – 2@4” |
Overall
| Length | 37” |
| Width | 22” |
| Height | 76-1/2” |
| Net Weight | 84 lbs. |
| Shipping Weight | 94 lbs. |
| Shipping Carton | 36” x 22-3/4” x 22-3/4” |
| Warranty | 5 Years |
