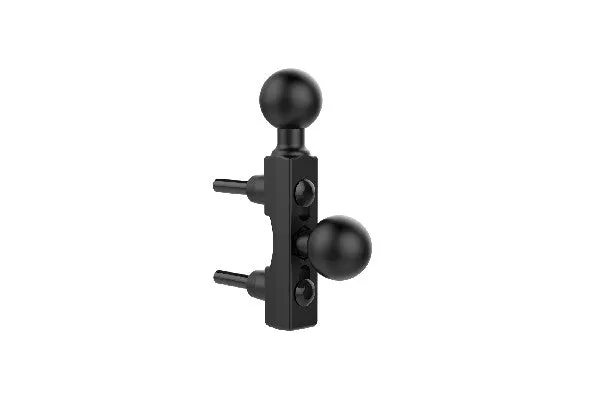

RAM Motorcycle Brake/Clutch Reservoir Base with Add-on Ball

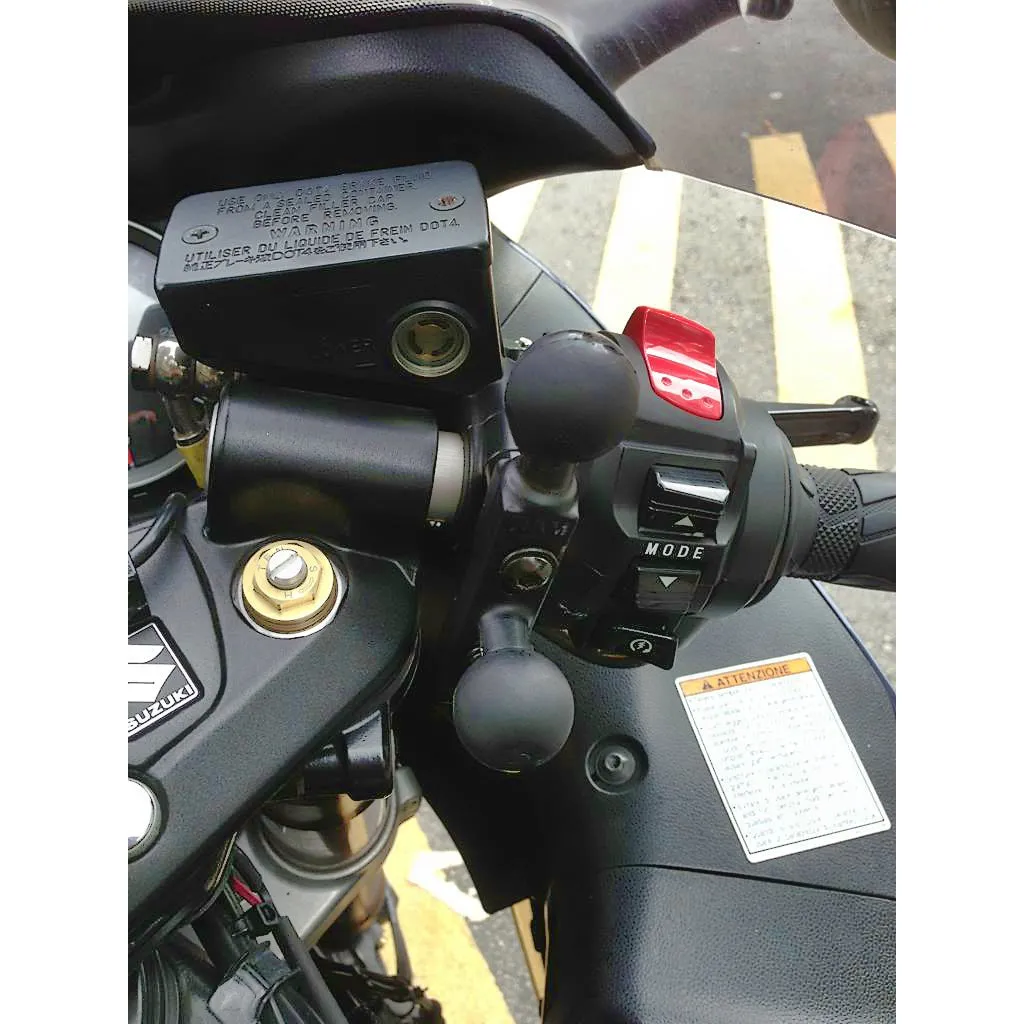

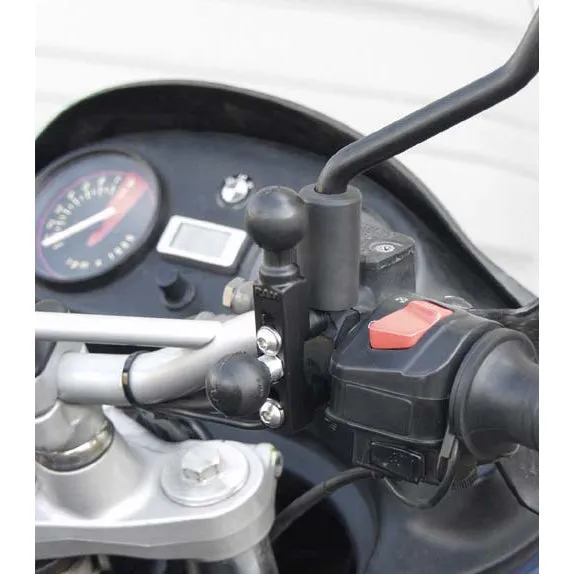

- The RAM-B-309-2U connects to your handlebar clutch/brake clamp, left or right side, and holds two 1" diameter mounting ball.
- The ball that is connected between the hole centers is removable.
- The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit.
- To see if the RAM-B-309-2 base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir.
- The holes centers have a minimum width of 0.94" and a maximum of 1.58".
FEATURES
- Utilize your existing reservoir cover with this ball base for motorcycles; hardware included
- Compatible with any B size RAM® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
HARDWARE INCLUDED
- Assembly Hardware
- (2) M6 x 55mm Hex Bolts
- (2) #1/4-20 x 2" Hex Bolts
- (2) 1/4"-20 x 2.5" Hex Bolts
- (2) 1/2" Spacers
- (2) 1/4" Split Lock Washers
BALL/SOCKET SIZE
- B Size 25mm (1")
MATERIALS
- Marine-grade aluminum
