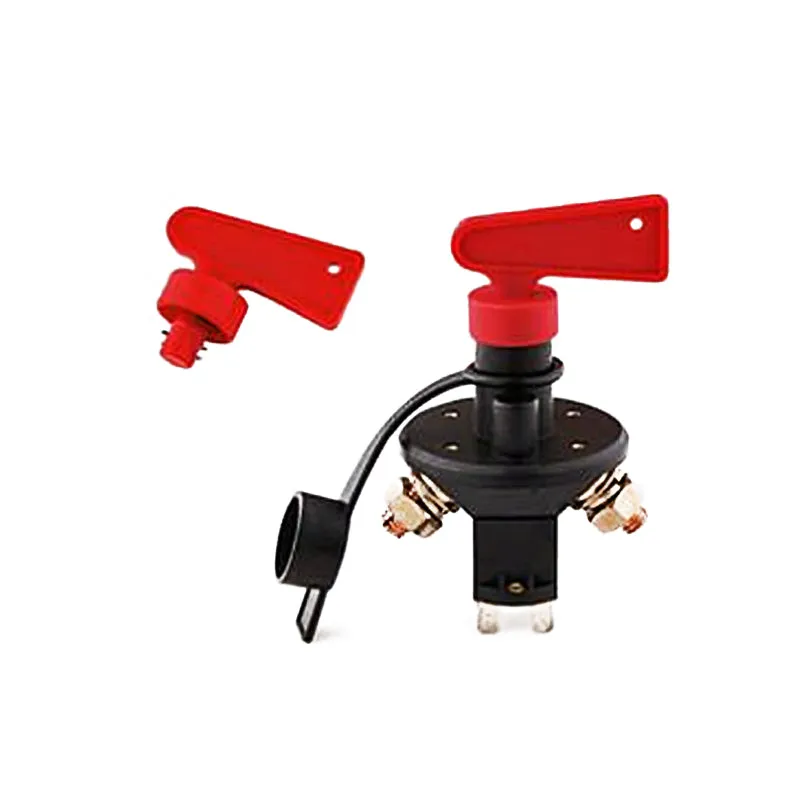

Pyrotect FIA Kill Switch
The Pyrotect FIA Kill switch is a great choice for all NASA/SCCA or FIA governed race cars. This switch has three sets of contacts for cars with alternators. The main contacts disconnect the battery while the auxiliary contacts disconnect the ignition coil and short the alternator output to ground through a 3 ohm resistor that is furnished with the switch. A removable actuating key with splash guard, weather-proof cap, resistor and installation instructions are included.
Features:
- Made to FIA rules
- Cuts engine and all electrics
- Terminal and resistor design prevents alternator damage on switchoff
- 10mm terminals for battery cable
- Removable key
- Rubber cover protects switch when key is removed
- Key predrilled for pull cable
The kit includes:
- Switch
- Key and protective cap
- Wiring diagram
- Diode
- Sticker
