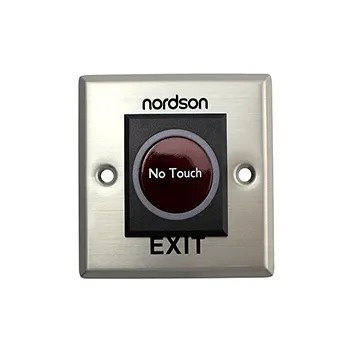

NF-85 Infrared Switch
Stainless Steel
Input : DC12V
Contact Rating: 12-28V,3A
Output Contact: NO\NC\COM
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
LED Indicator:
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby)
Red LED indicator: Power ON(sensation) ◆Dimensions: Dimensions:86*86*29(mm)
Weight: 0.25kg
Input : DC12V
Contact Rating: 12-28V,3A
Output Contact: NO\NC\COM
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
LED Indicator:
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby)
Red LED indicator: Power ON(sensation) ◆Dimensions: Dimensions:86*86*29(mm)
Weight: 0.25kg
SPECIFICATION
| Model | NF-85 Infrared Switch |
| Application | Gate/Door/Exit/Automation control High capacity of relay dry contact |
| Standard Structure | SUS 304 Stainless steel Plate, Infrared Button |
| Signal Light | Blue LED indicator: Power ON(standby) Red LED indicator: Power ON(sensation) |
| Input Volt | DC 12V |
| Current Rating | 12-28V,3A |
| Output Contact | NO,NC,COM |
| Mechanical Life | 1000000 tested |
| Diffused Detection | No touch / Touch free Exit Sensor |
| Actuation Control | Optical / Infrared Technology |
| Waterproof protection | IP-55 |
| Detection range | 0.1 ~ 10 cm |
| Suitable for Door | Hollow Door |
| Operating temp | -10～ 55℃(14-131F) |
| Operating Humidity | 0-95% (non- condensing) |
| Dimensions | 86L*86W*29H(mm) |
| Weight | 0.085kg |
NF-85 is non-touch Infrared Switch button with IP55 industrial grade waterproof and dustproof protection.It has imported 304 stainless steel faceplate,dual LED indicator & highly sensitive sensors.It is suitable in all kinds of high standard application situations like hospital.
