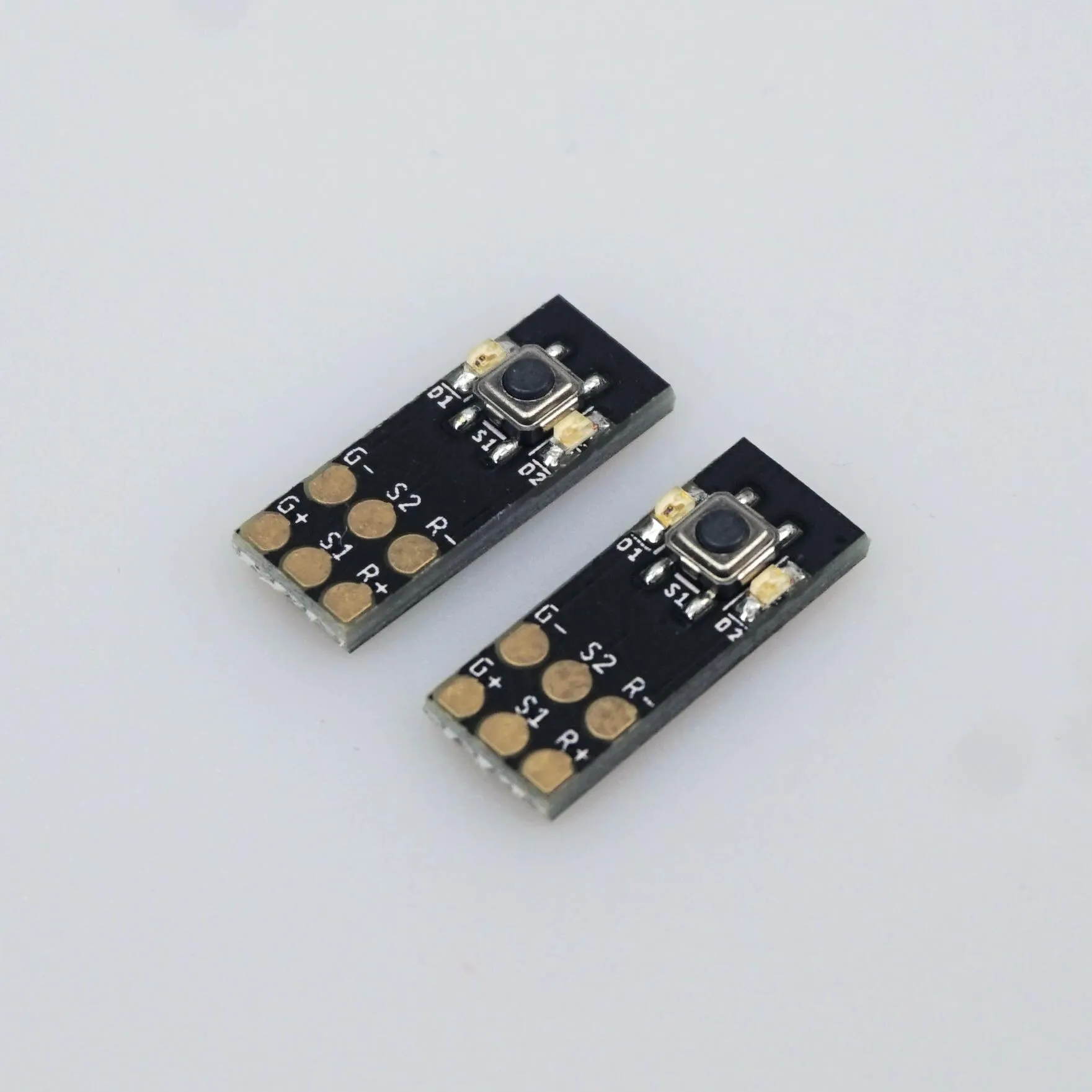

Here we have a KR X OR Emperor replacement tactile PCB LED switch set. The same set found inside of our KR x OR EMPEROR DIY Empty Hilt Kits.
Important note: It appears that some of the PCBs may have the LEDs solder pads reversed. The Green LED may be connected to the pads marked as 'R' and the Red may be connected to the pads marked as 'G'. So! Before you install please be sure to test the LEDs to confirm the connections. Unfortunately it seems the factory may have made an error during the production process. Thankfully it is a simple check prior to soldering.
Red LED Specs:
- Forward Voltage: 2.0 - 2.2v
- Forward Current: 20ma
Green LED Specs:
- Forward Voltage: 3.0 - 3.2v
- Forward Current: 20ma
