Hyundai/KIA 09453-21000 Spring Compressor
Disassembly:
- Remove the snap ring from the clutch retainer.
- Take out three clutch reaction plates and two clutch discs. If the clutch reaction plates and the clutch discs are to be reused, be sure not to change the installation order or direction.

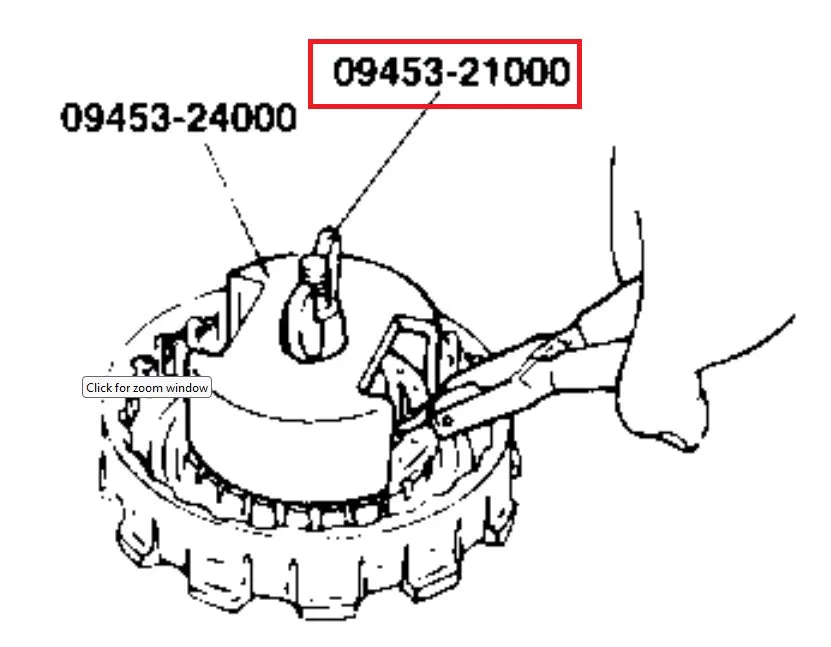

- With the return spring compressed with special tool (09453-21000, 09453-24000), the spring compressor, remove the snap ring, then the spring retainer and return spring.
Reassembly:
- Install the D-section ring in the groove on the outside surface of the piston with its round side out. Install another D-section ring to the front clutch retainer.
- Apply automatic transaxle fluid to the outside surface of the D-section rings. Then push the piston into the front clutch retainer by hand.
- Install the return spring and spring retainer.
- Compress the return spring with the special tool (0945324000) and install the snap ring.
