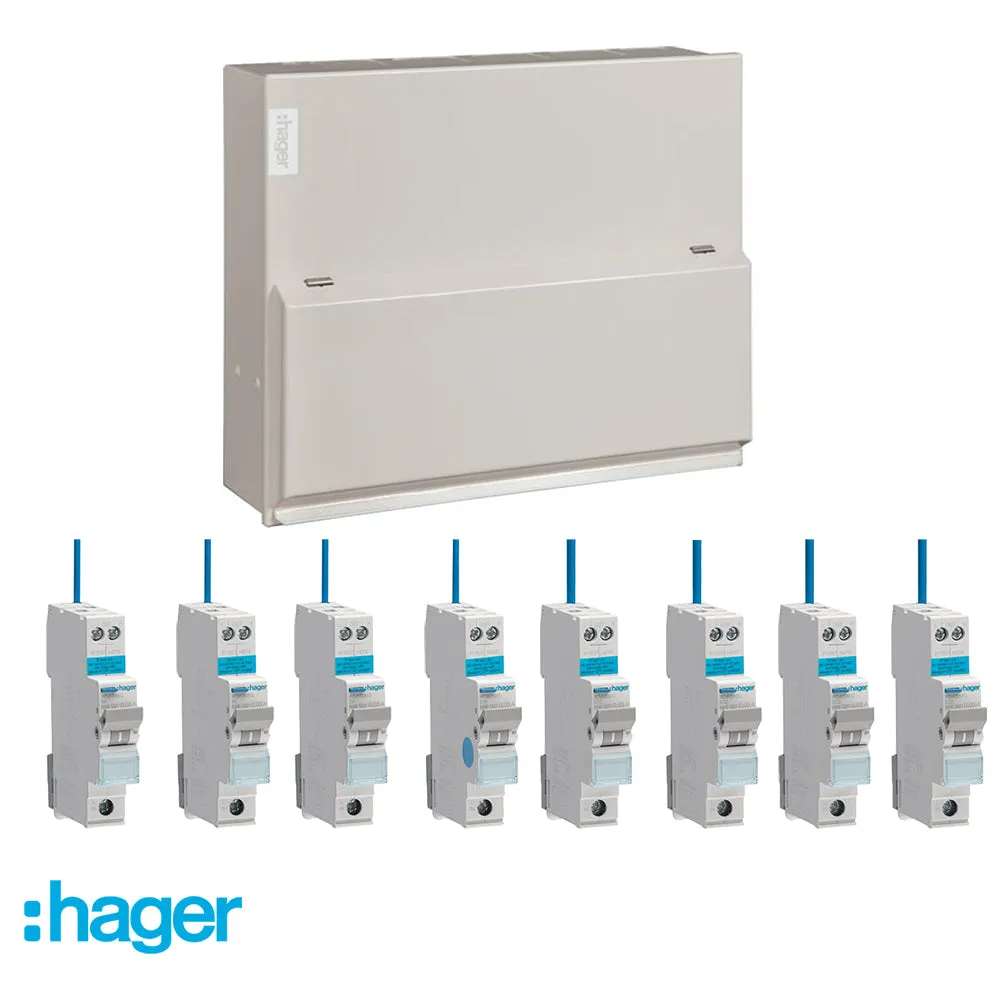

Hager VML108SPDRK 8 Way 100A Main Switch Consumer Unit with T2 SPD (Round Knockouts) 8 RCBOs
8 Way 100A Switch Disconnector Incomer with Factory Fitted Surge Protection.(Round Knockouts)
This comes with 8 RCBOs Single Pole, B Curve, 6kA, 30mA, Type A
- 3x 6A
- 1x 16A
- 4x 32A
Dimensions (HxWxD)mm for VML108SPDRK: 299 x 246 x 100mm
Circuit Protection
The Hager circuit protection range of metal consumer units and protection devices, offers flexible versatile solutions for electrical installations.Characteristics:
- All Design 10 consumer units contain top, bottom & rear knockouts and a meter tail cable entry plate (VM04CE) as standard.
- Supplied with a full metal DIN rail, 100A switch disconnector incomer and a full complement of earth and neutral terminals along with marking labels, busbar and instructions.
- Comes with a Type 2 SPD fitted.
- Recommended for use with TT systems when utilising RCBO on all outgoing circuits.
- We also recommend the use of cable clamp (VA10MT) for use on TT systems, available as an accessory.
- Conforms to BS EN 61439-3 Including Annex ZB (16kA rating).
Data Sheet:
Hager Residential Distribution Catalogue:
