Introducing Free-Way blade switches - the 5B5-01 model delivers 10-position switching! Imagine the possibilities with that!
The Free Way 5B5-01 is a direct replacement for a conventional 5 way switch in a Strat®, such as CRL or Oak Grisgby but offers 10 way switching.

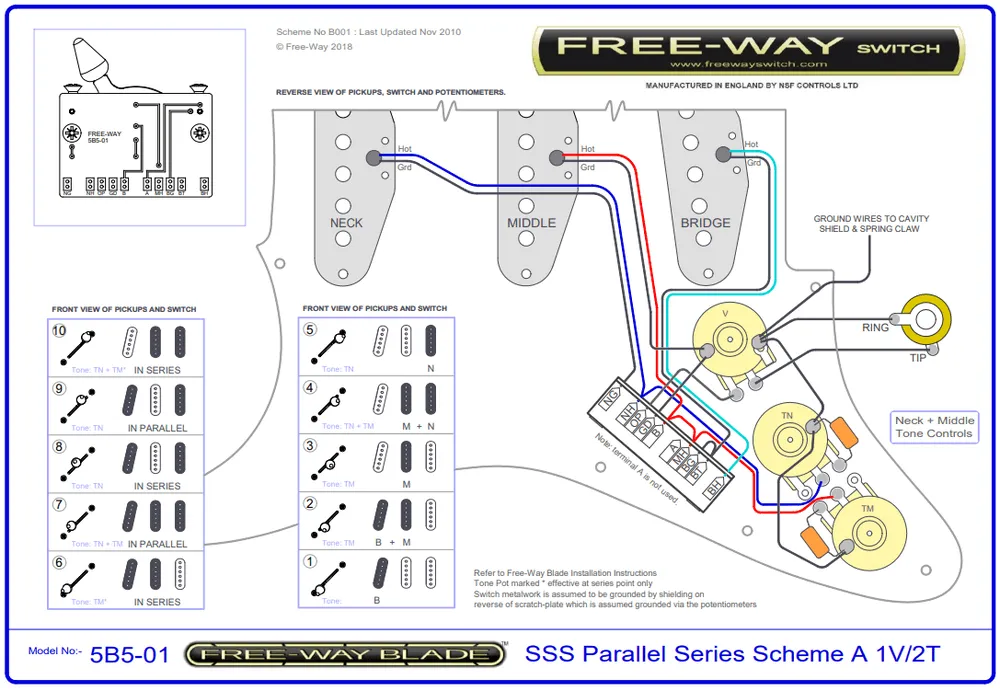

Featuring two banks of 5 positions, the lower bank of 5 positions provides all of the classic pickup combinations we know and love - but the upper bank contains the missing parallel combinations (neck bridge) & (neck middle bridge) as well as offering all three pickups in series together, offering higher output tones not normally associated with a single coil loaded Strat®.
Visually undetectable when fitted, the Freeway 5B5-01 delivers incredible tonal flexibility and offers an extra dimension to the Strat® wiring setup.
Dimensions:
- Required cavity depth: 34mm
- Lever slot: 28mm x 2mm
- Total length: 50mm
- Thickness: 15.6mm

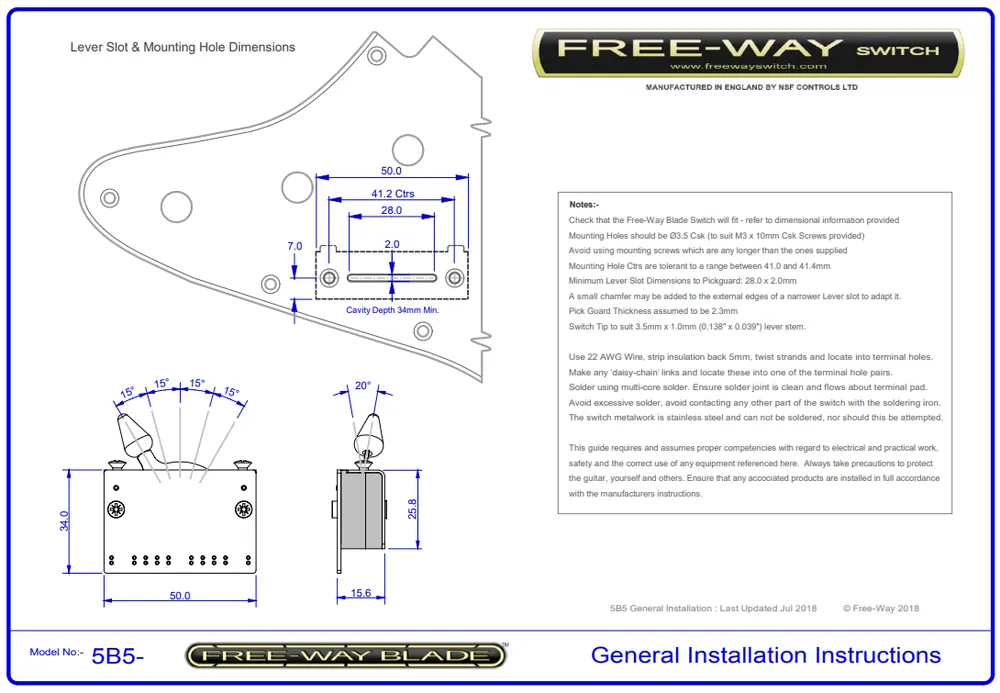

For full dimensions refer to photos. Supplied with black and white switch tips.
We also offer the (designed specifically for HSS, HSH and HHH setups).
