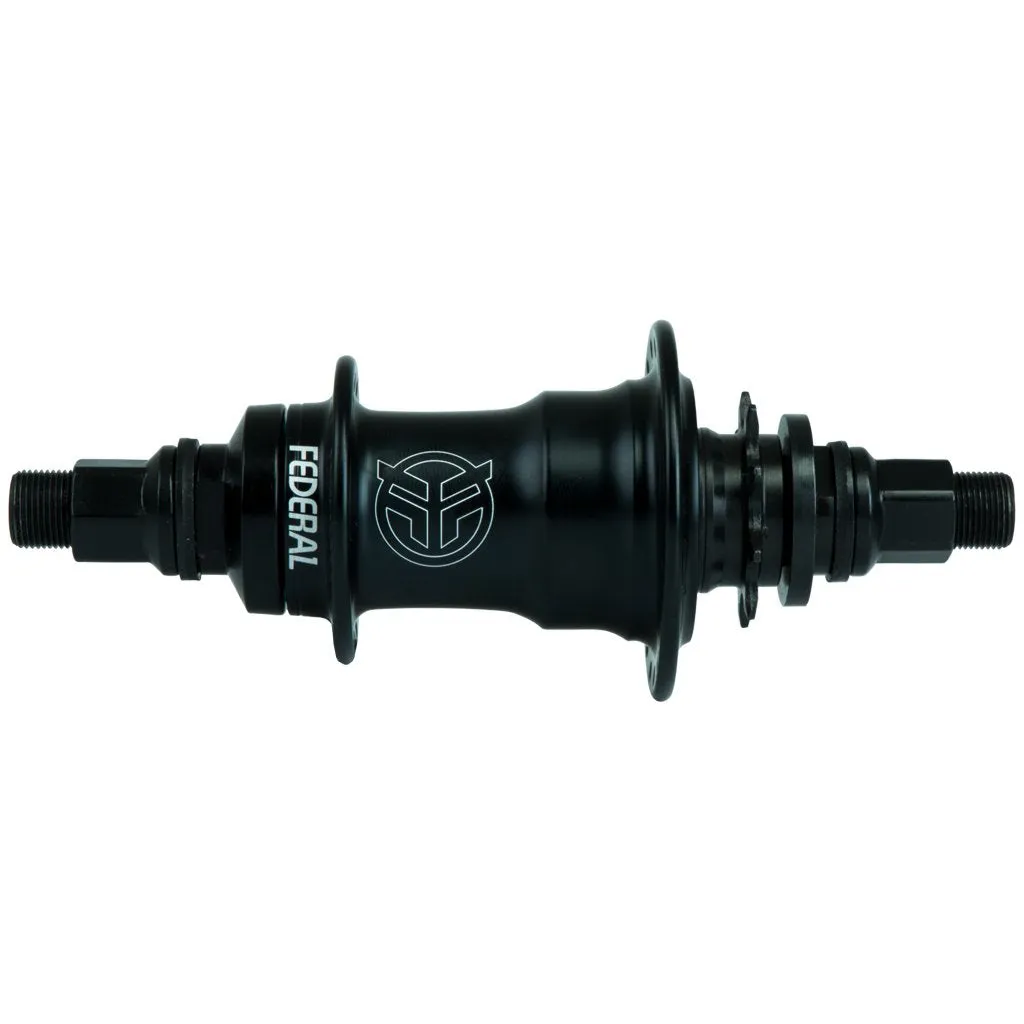

Federal Right Hand Drive Motion Freecoaster Hub With Guards - Matt Black 9 Tooth

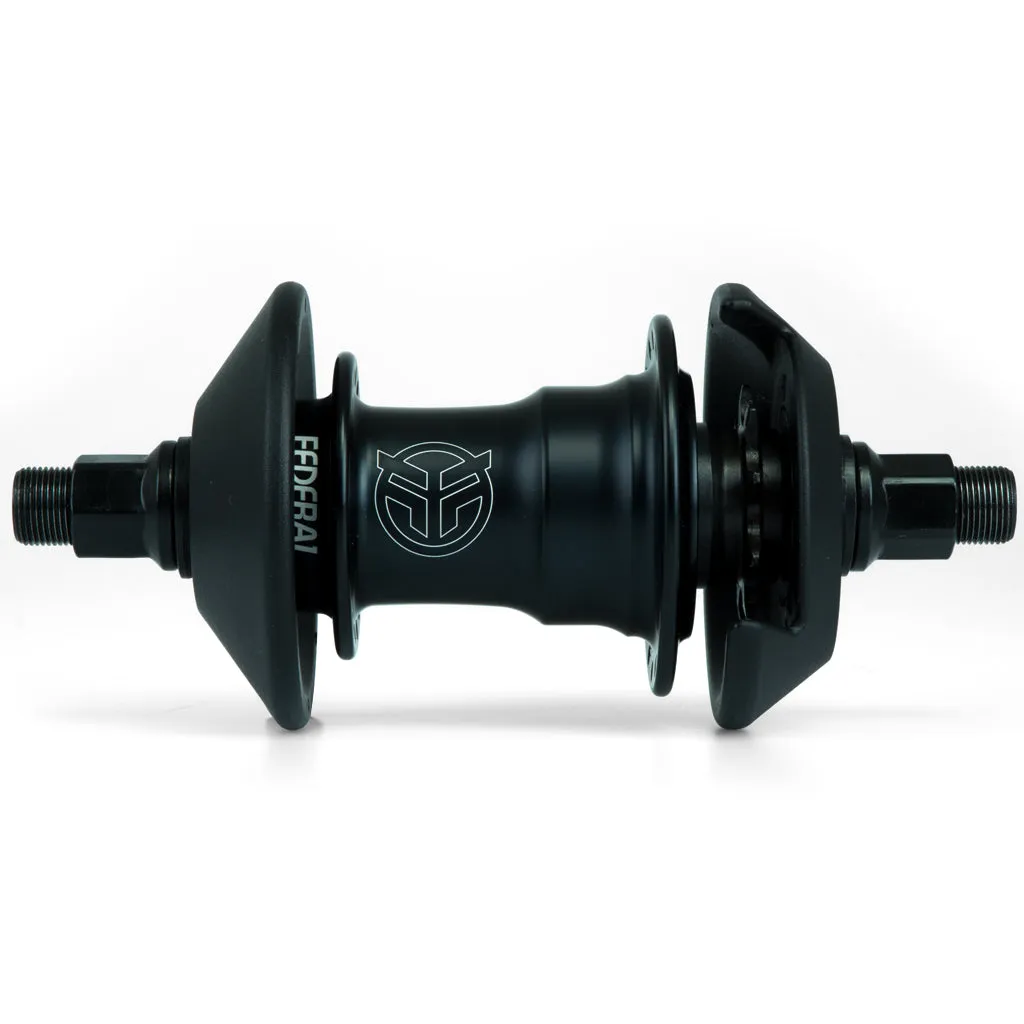

Federal's Motion Freecoaster is made using a 6061-T6 Aluminium Alloy shell and heat-treated hollow Chromoly axle. This hub features a completely new axle along with a Nylon clutch retention spring. By replacing the traditional spring and ball system, the new hub requires less maintenance and is a lot easier to disassemble. The Nylon retention spring also reduces the internal drag and enables faster rolling and smoother crankflips. Both drive side and non-drive side guards feature engraved logos are included with the hub.

Click  for a PDF with exploded drawing and instructions

Weight

0.619kg/ 1lb 6oz (hub only)
0.698kg/ 1lb 9oz (including guards)

Spec

6061-T6 Alloy shell
Heat-treated hollow 14mm male axle with 8mm Allen broach
Chromoly axle and 17mm nuts
Nylon clutch retention spring
7905 ACD (Drive side)/ 6202 (Non-drive side) sealed bearings
