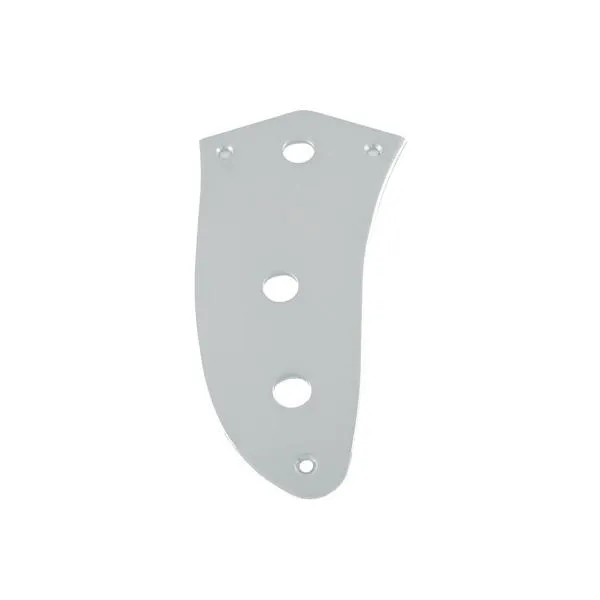

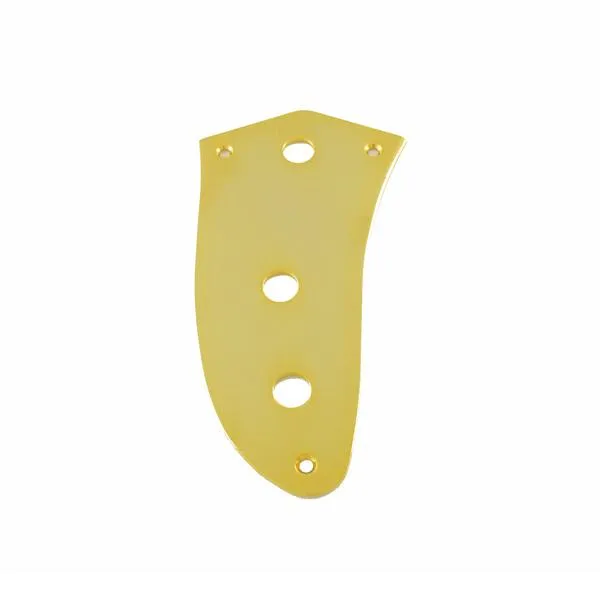

Control plate for Jaguar
- Pot and jack plate for Fender Jaguar guitars
- Overall length 128mm
- Width at widest point: 67mm
- Thickness: 1.4mm
- Distance between top two mounting screwholes (centre to centre): 46mm
- Distance between top left and bottom mounting screwhole (c to c): 106mm
- Distance between top right and bottom mounting screwhole (c to c): 104mm
- Distance between top pot hole and middle pot hole (c to c): 51mm
- Distance between middle pot hole and jack socket hole (c to c): 33mm
- Distance between point at top of plate to centre of first pot hole: 17mm
