Click Deco Plus DPSC20508 8 Gang GridPro Frontplate - Satin Chrome

CLICK GridPro Interchangeable Plates and Modules
Now introducing the new range of GridPro front plates and modules. This comprehensive selection of grid wiring accessories offers ultimate flexibility. With a wide range of modules and finishes to choose from, our 20A-rated grid switch modules are ideal for both domestic and commercial applications. The GridPro range will seamlessly complement your existing Click installation, as it was specifically designed to match our existing ranges of Click wiring accessories.
Screw-In Modules - The screw attachment feature allows the modules to be assembled on 1-4 gang GridPro frontplates without a yoke.
Clip-On Modules - When a yoke is required on the multi-tier GridPro frontplates the module can be assembled using the clip attachment, which secures them to the metal yokes. Clip on grid modules can be used on 6-24 gang GridPro frontplates excluding the screwless Definity GridPro frontplates, which have their own dedicated inserts.
Standard Back Boxes - A unique feature of 1-4 gang GridPro frontplates is that any British Standard BS4662 flush mounted back boxes can be used. This is because our 1-4 gang GridPro frontplates so not require a yoke!.
No Yoke - The GridPro modules are secure to the back of the 1-4 gang GridPro front plates via the screw feature on the modules*. The benefit of not using a yoke is that it allows the installer to use standard back boxes. *Excluding the screwless Definity GridPro front plates, which have their own dedicated inserts.
Horizontal Fixing Screws - GridPro front plates have horizontal mounted screws to give uniform, aesthetic look throughout the range.

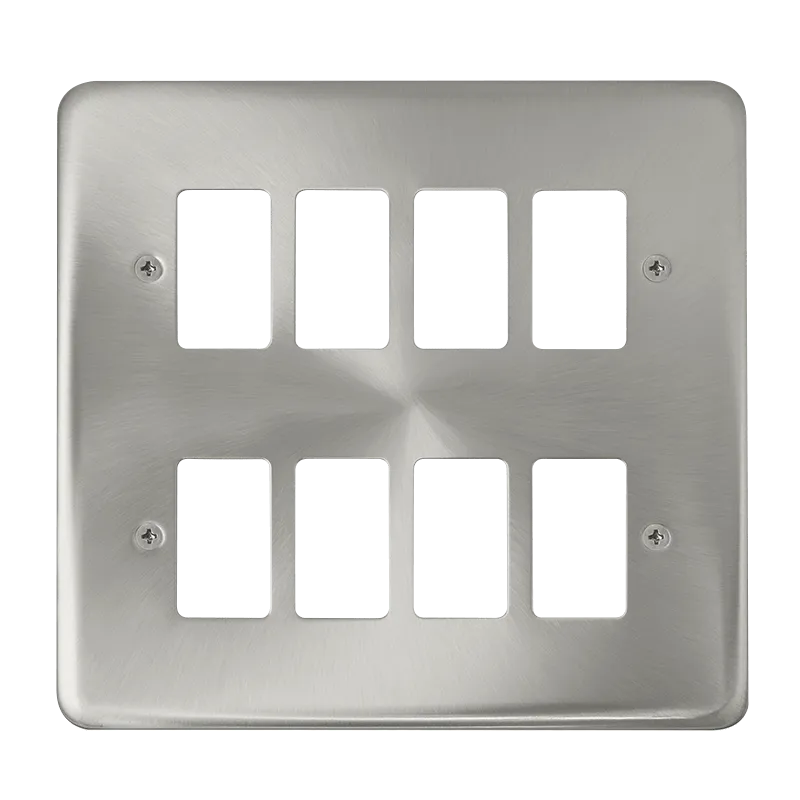

This item is Deco Plus 8 Gang GridPro Frontplate - Satin Chrome

Data Sheet:

CLICK GridPro Catalogue:
