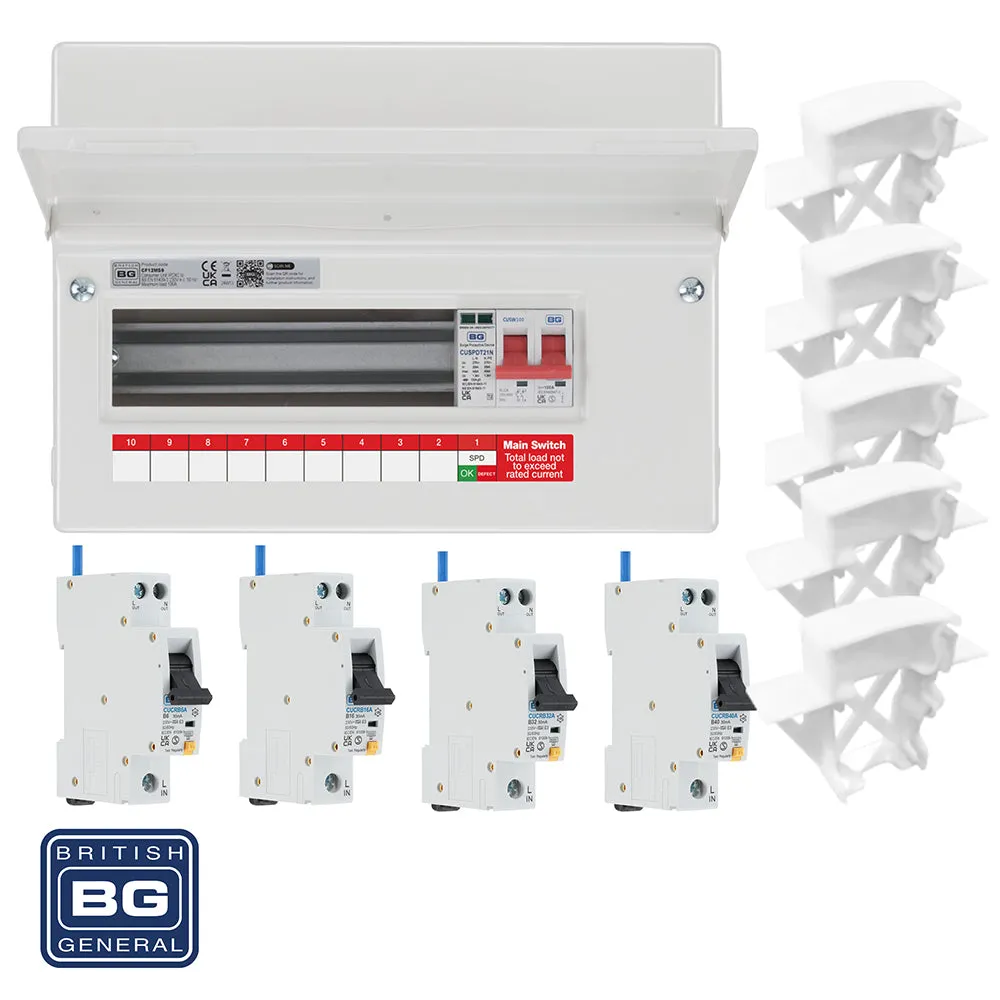

BG Fortress CF12MS9 12 Module 9 Way 100A Main Switch Consumer Unit with T2 SPD 4 RCBOs & 5x CUA04 FREE Blanks
12 Module 9 Way 100A Main Switch Consumer Unit with Type 2 SPD.
This comes with 4 RCBOs Single Pole, B Curve, 6kA, 30mA, Type A
- 1x 6A
- 1x 16A
- 1x 32A
- 1x 40A
- 5x BLANK (CUA04)We will supply CUA19 instead of CUA04 once stock finish
Dimensions (HxWxD)mm for CF12MS9: 316 x 231 x 116mm
BG Fortress Circuit Protection
The BG Fortress circuit protection range has undergone its most extensive upgrade yet, with the latest improvements dovetailing the new guidelines around the 18th Edition Wiring Regulations, Amendment 2.Description:
This range of all metal consumer units offer a flexible solution for the 18th Edition Wiring Regulation BS7671.
Available in a number of sizes from 6 - 19 way with SPD, these consumer units will suit all applications. Each unit has an integrated spirit level, aiding installing without additional tools.
Supplied with 100A Main switch and SPD device. Each unit is supplied with busbar, label sheet 2 or 4 cover blanks and instructions.
MCB, RCBO and Control Devices can be fitted into all of the consumer units depending on the circuit requirements.
Lockable covers are available in the range, please contact us for more information.
