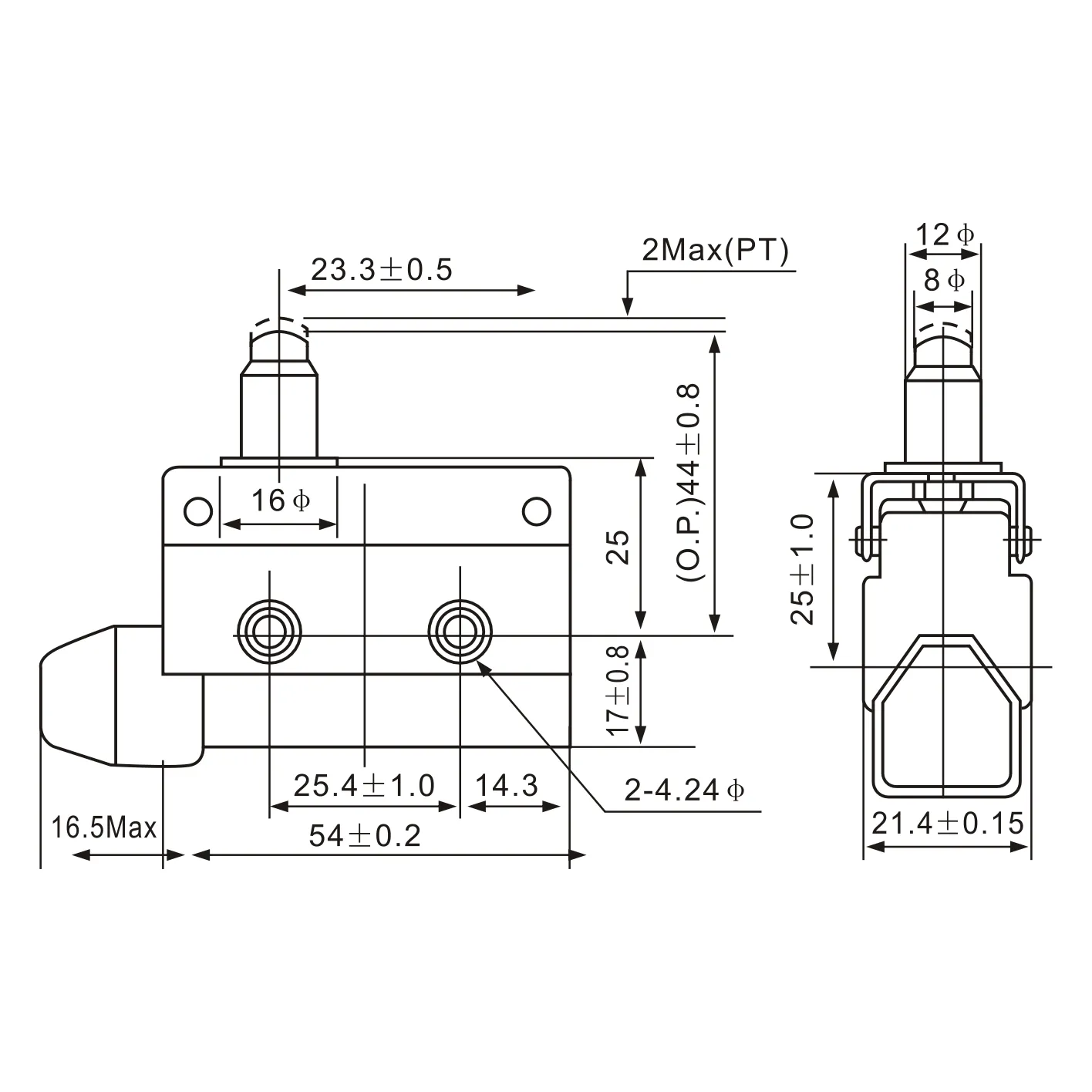

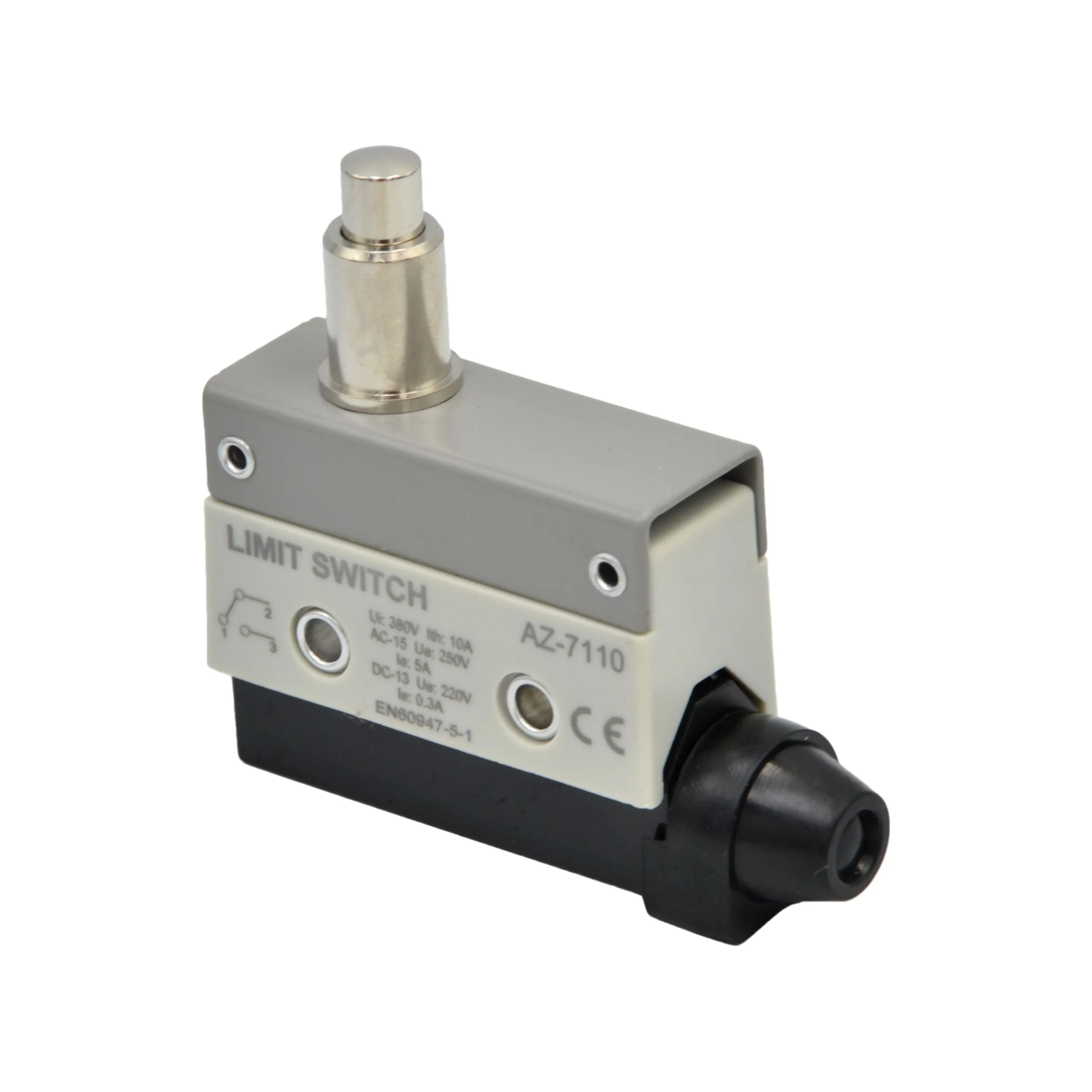

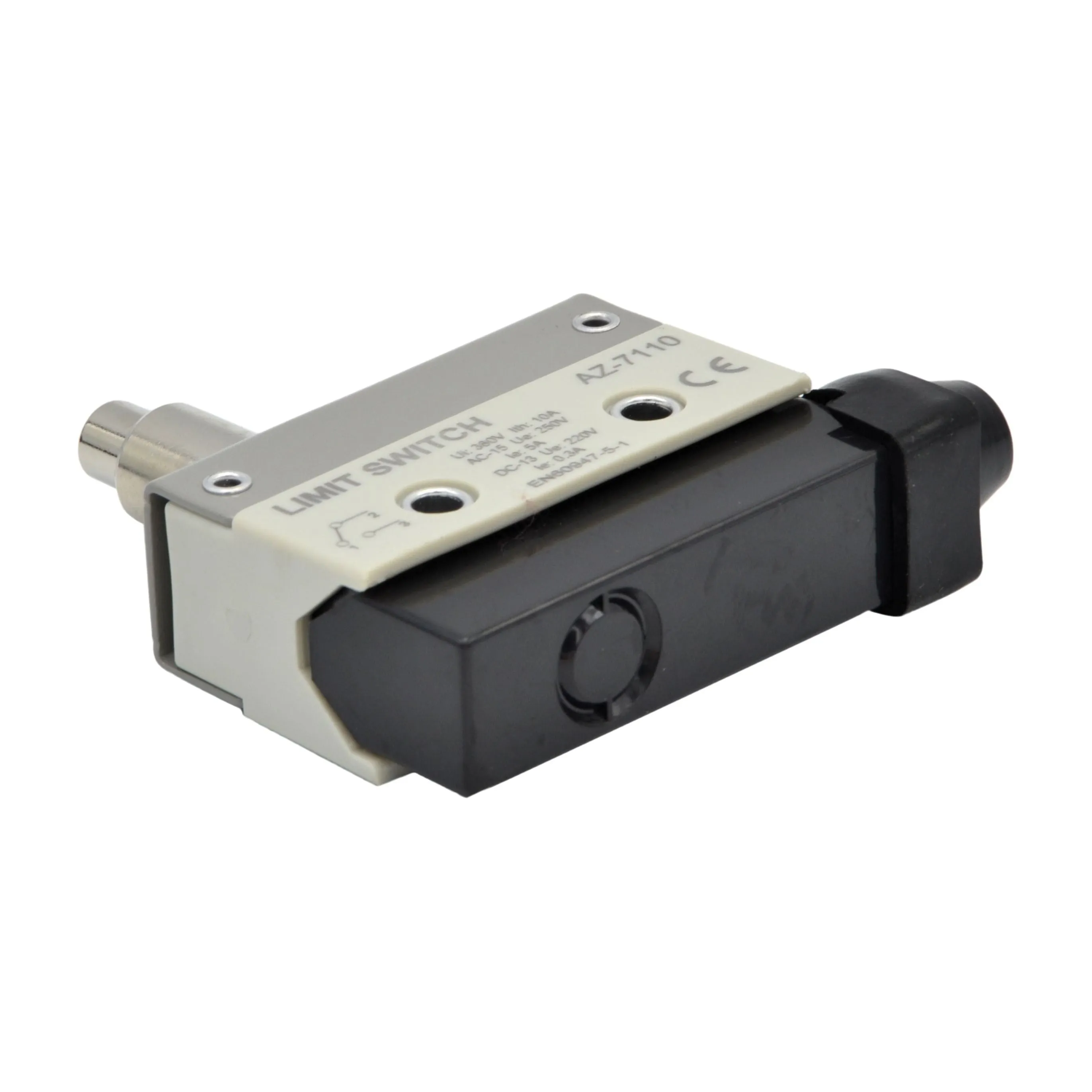

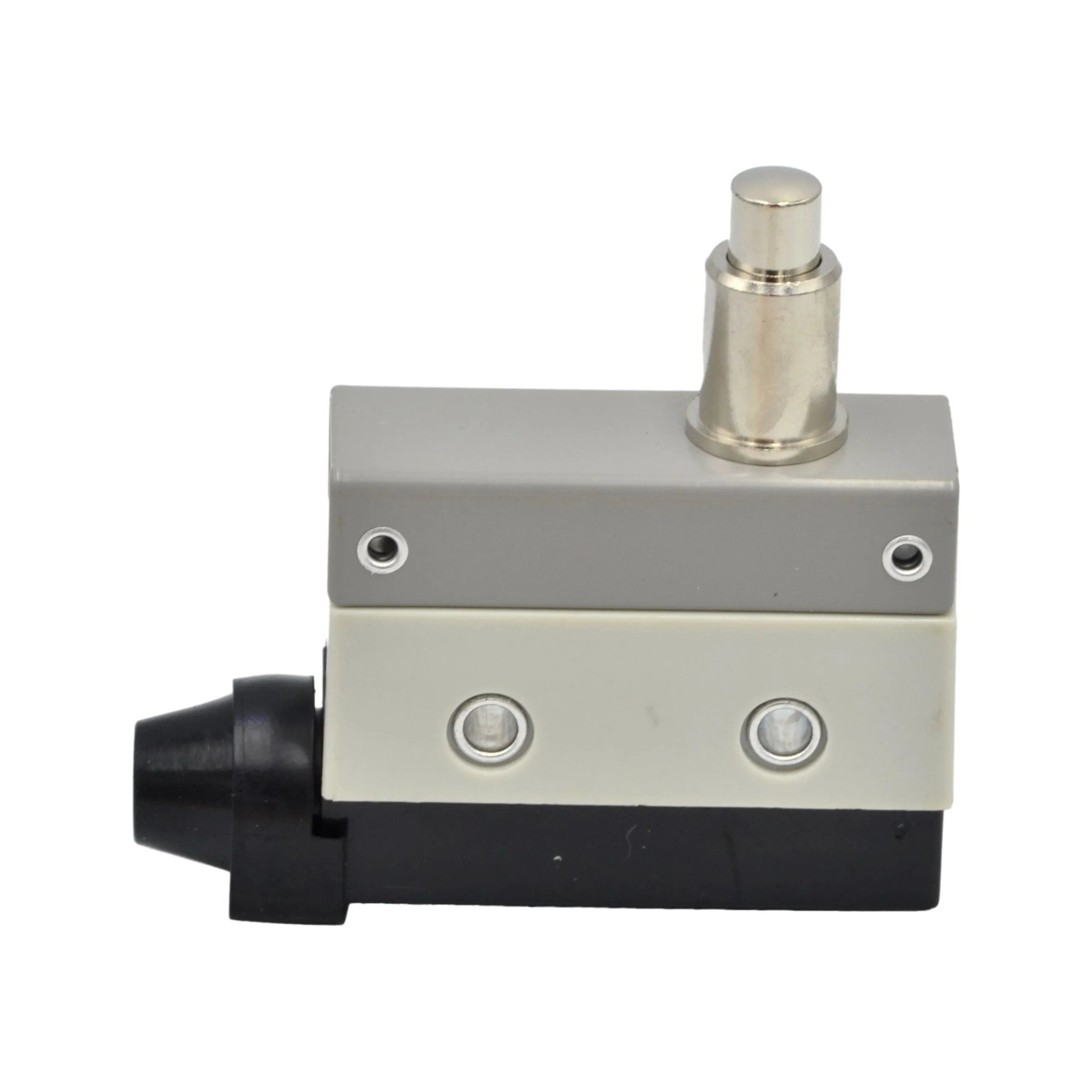

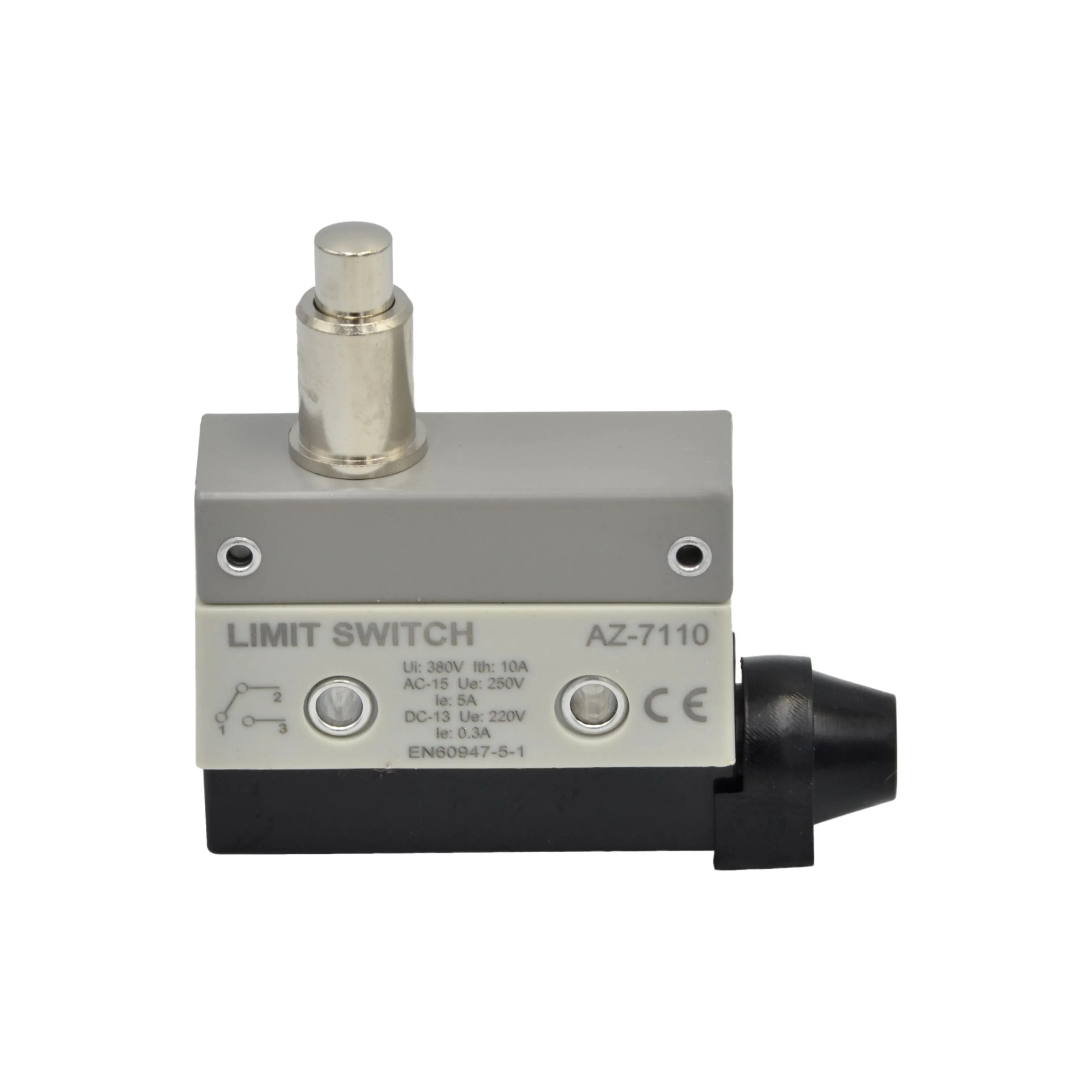

Features
- Diverse actuators with adjustable action positions
- High switching capacity for both on and off (15A)
- Exceptional accuracy
- A broad range of operational speeds
- Each type offers a choice of solder terminals, tab terminals (marked as 'C'), or blank options for screw terminals.
Ratings
| Rated Voltage | Non-inductive load(A) | Inductive load(A) | ||||||
|---|---|---|---|---|---|---|---|---|
| Resistance load | Lamp Load | Inductive load | Motor Load | |||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| 125VAC | 10 | 3 | 1.5 | 10 | 5 | 2.5 | ||
| 250VAC | 10 | 2.5 | 1.25 | 10 | 3 | 1.5 | ||
| 480VAC | 3 | 1.5 | 0.75 | 2.5 | 1.5 | 0.75 | ||
| 8VDC | 10 | 3 | 1.5 | 6 | 6 | 5 | ||
| 14VDC | 10 | 3 | 1.5 | 6 | 6 | 5 | ||
| 30VDC | 8 | 3 | 1.5 | 6 | 5 | 2.5 | ||
| 125VDC | 0.5 | 0.4 | 0.4 | 0.05 | 0.05 | 0.05 | ||
| 250VDC | 0.25 | 0.2 | 0.2 | 0.03 | 0.03 | 0.03 | ||
Contact Form
- close
- Carry the son together open
- Notes:
-
inductive load has a power factor of 0.4 min(AC)and a time constant of 7 ms.
lamp load has inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
Characteristics
| Operation speed | 0.01mm-50cm/sec | 1mm-2m/sec |
|---|---|---|
| Operation Frequency | 120 | Mechanical:120operations/minute |
| Contact resistance | 15㏁ | 15㏁max (initial value) |
| Insulation resistance | 100㏁ 500VDC | 100㏁ min (at500VDC) |
| Dielectric strength | 1000VAC , 50/60Hz | 1000VAC , 50/60Hz For 1 minute between terminals of the same polarity |
| 1500VAC , 50/60Hz | 1500VAC , 50/60Hz For 1 minute between current-carrying and non current-carrying metal parts | |
| 1500VAC , 50/60Hz | 1500VAC , 50/60Hz For 1 minute between each terminal and ground | |
| Vibration | 10-50Hz,1.5mm | 10-50Hz,1.5mm double amplitude |
| Shock | 1000m/Sec2(100G'S) | Mechanical durable:1000m/Sec2(about 100G' S) |
| 300m/Sec2(30G'S) | Malfunction:300m/Sec2(about 30G' S) | |
| Ambient temperature | -10- 80°C | Use:-10- 80°C |
| Humidity | 95%RH | <95%RH |
| Life | 10,000,000(OT) | Mechanical:100,000,000 operations above(under rated OT) |
| 500,000 | Electrical:500,000 operations above | |
| Weight | 60 | About 60g |
| Degree of Protection | IP40 | IP40 |
