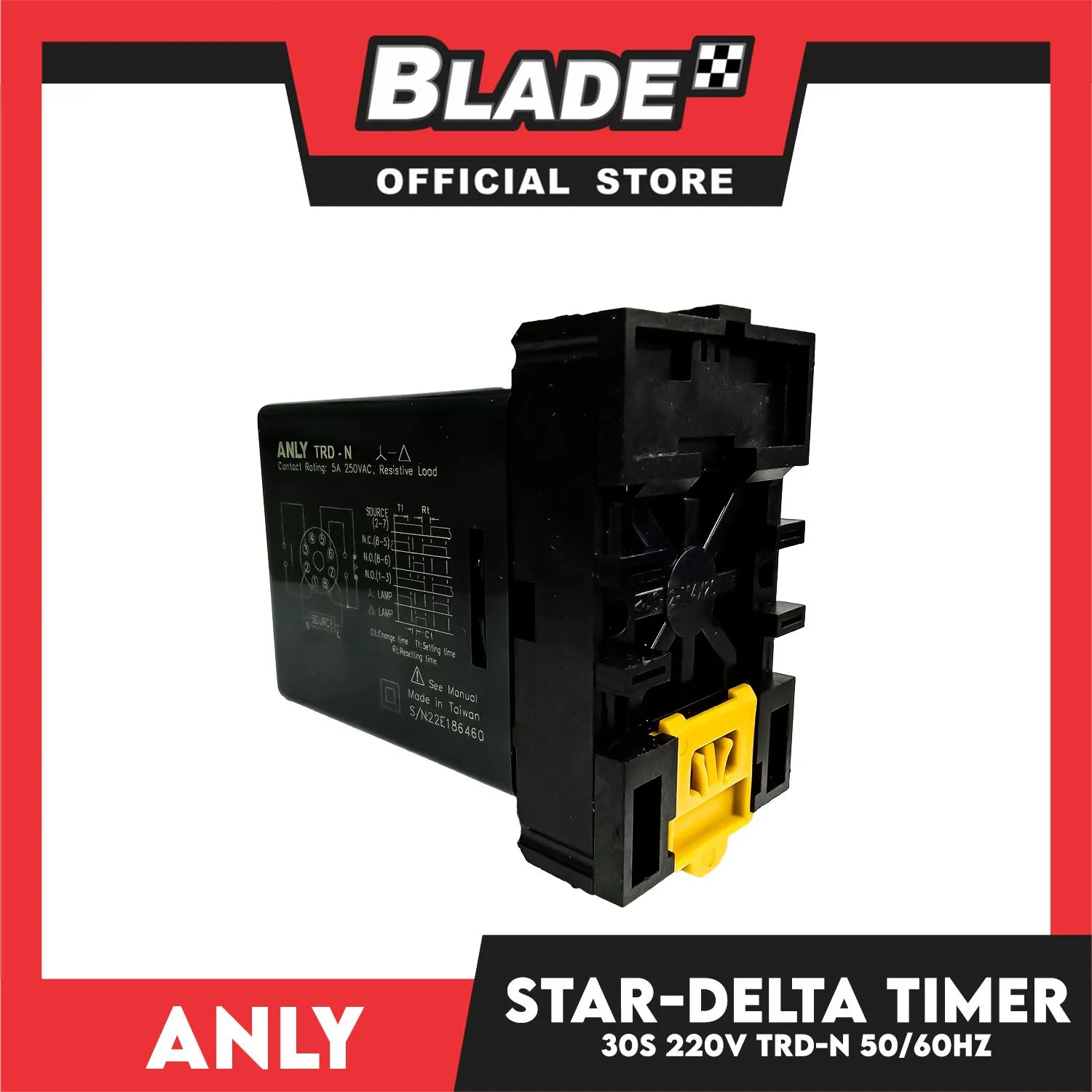

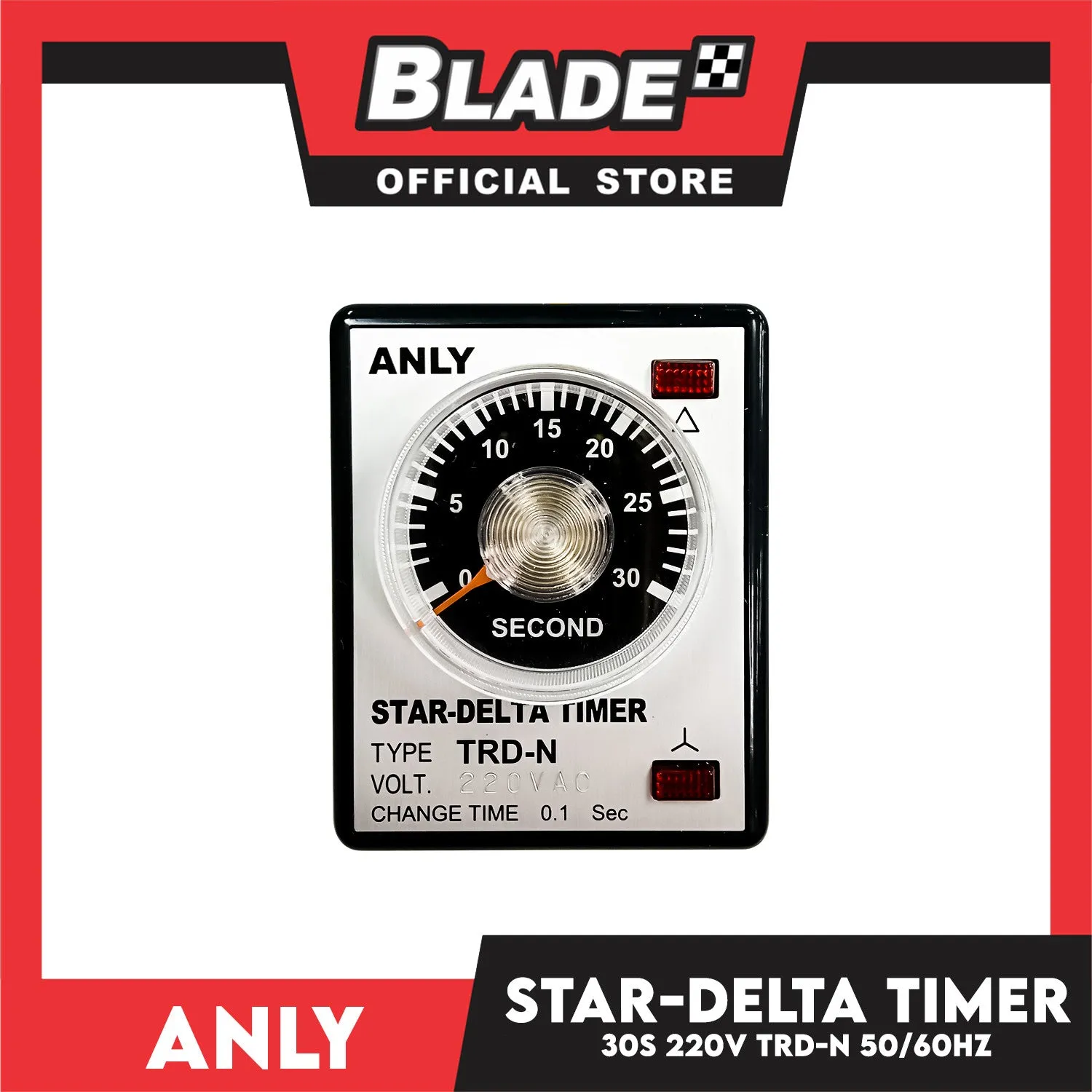

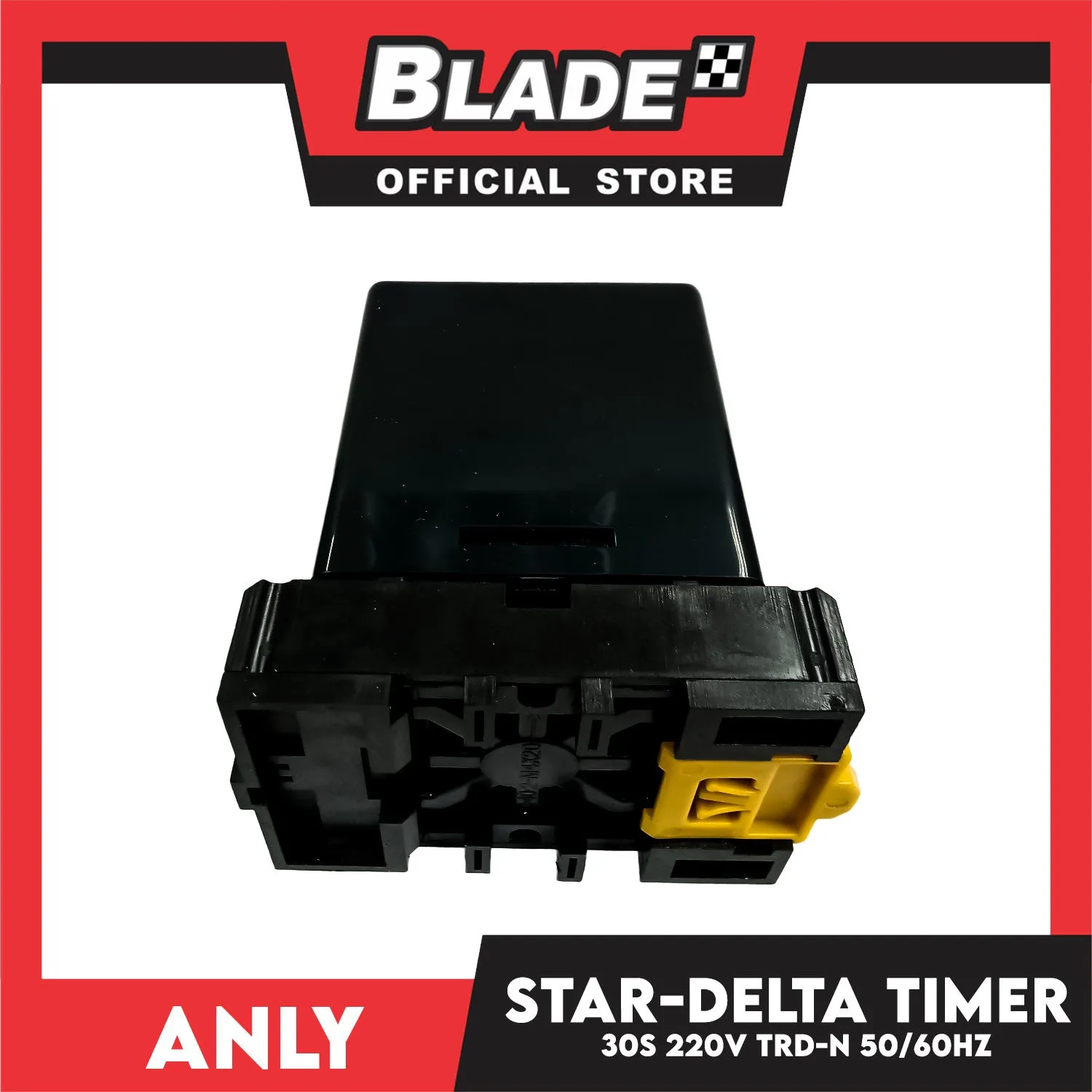

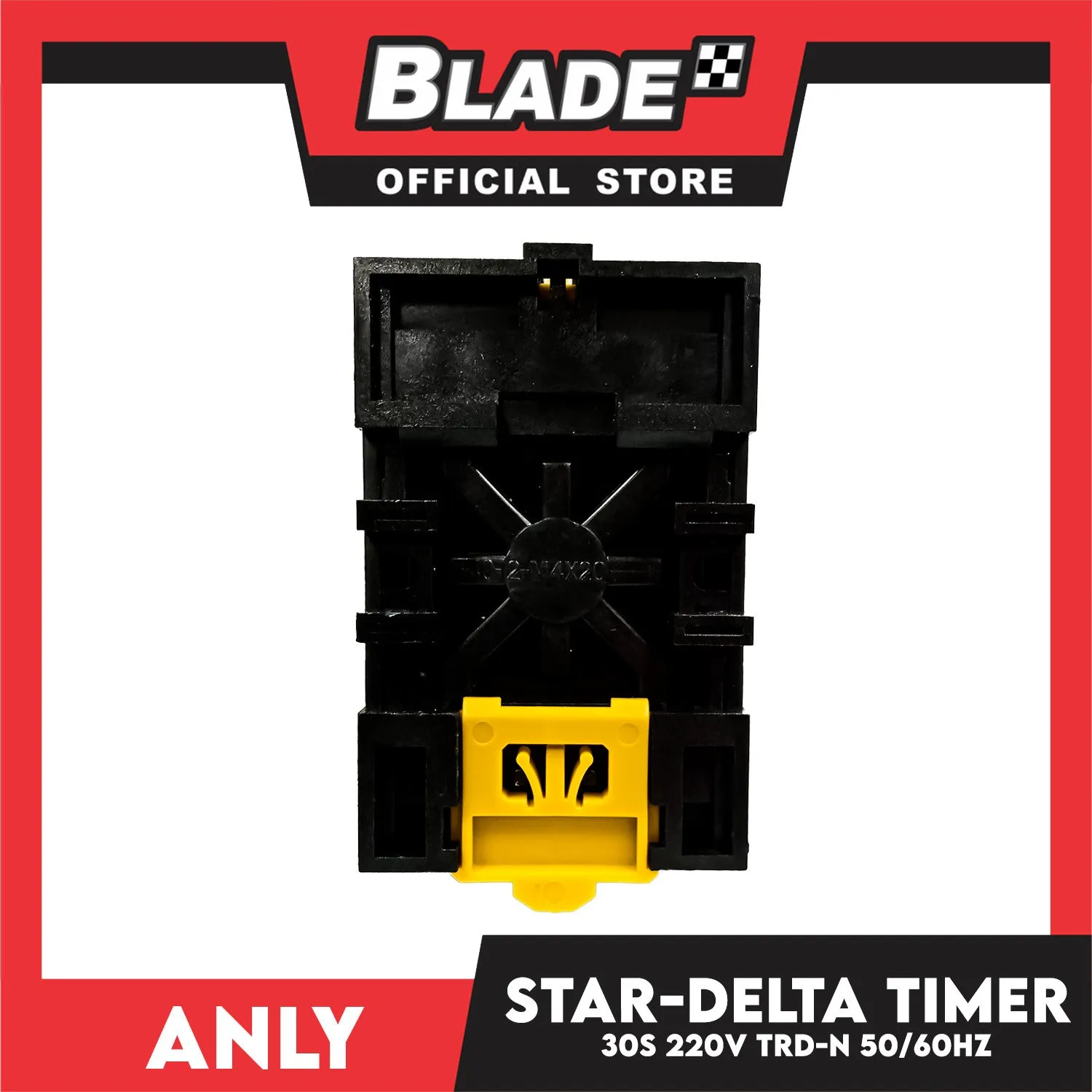

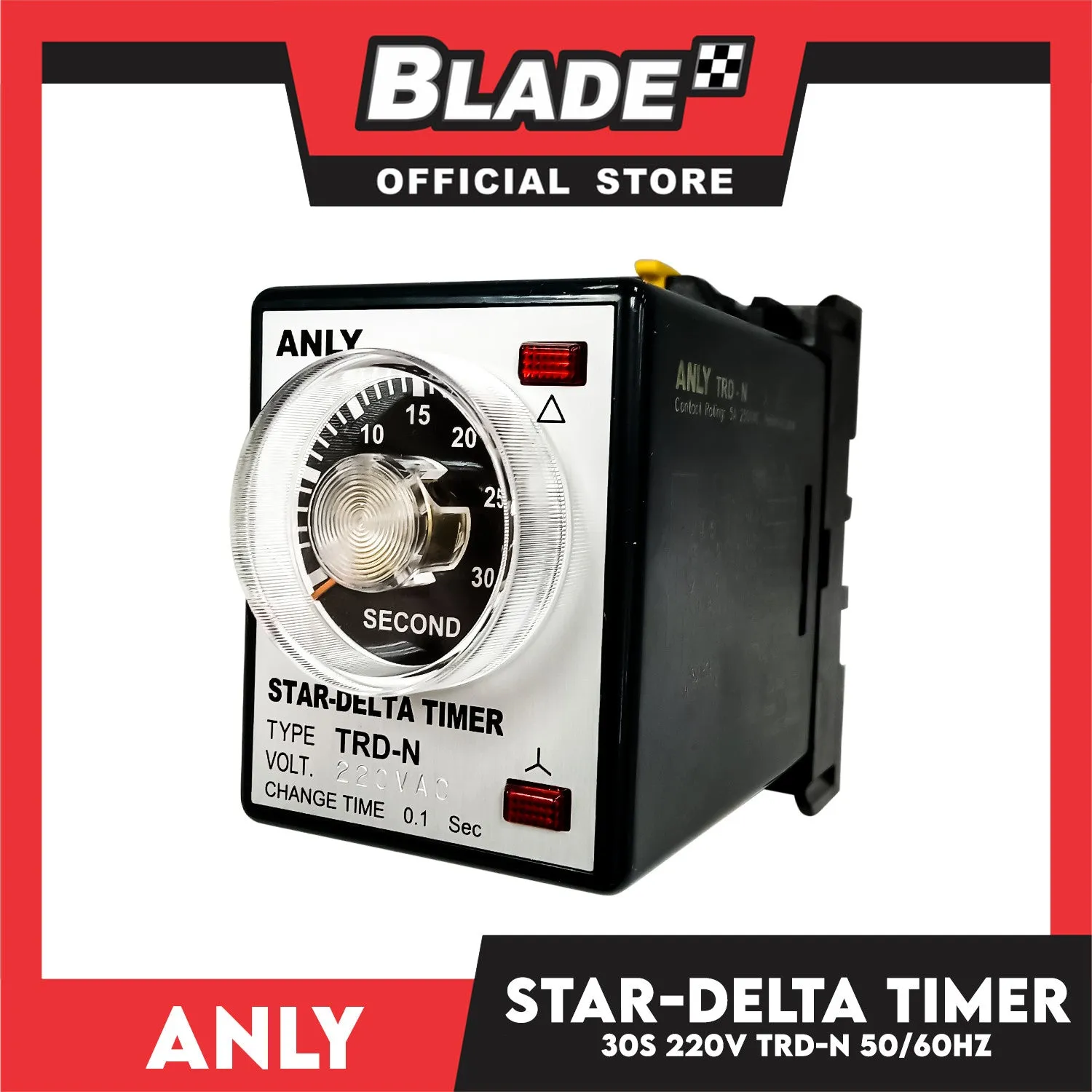

- Design for induction motor starter (Y-△)
- Y-to-△ change-time from 0.1S to 0.5S
- Y-to-△ change-time variable from 0 to 1S*
- Short reset time for repeat operations
- 30seconds standard time ranges
- Specifications:
- Operating voltage: AC(V):220
- Rated frequency: 50 / 60 Hz
- Contact rating: 250VAC 5A (resistive load)
- Reset time: TRD MAX 0.3s , ARD MAX 0.2s
- Power consumption: Approx. 3VA
- Life: Mechanical: 5,000,000 times, Electrical: 100,000 times
